Use the same software as SSI inertial profilers to navigate large corrective grinding equipment to roughness. Mounted the CS7900 to a milling or diamond grinding machine and correct roughness without marking the ground with paint. The CS7900 is portable and can also be used in any vehicle to lay out grinds.
SSI offers many high accuracy GPS options down to 4cm with a subscription. Most CS7900 systems have a 0.75-meter accuracy which is adequate for corrective grinding operations.
GPS Navigation in SSI Profiler
Features
Navigate roughness for milling or grinding corrections without painting marks on pavement
Utilizes a precise GPS receiver with an optional satellite subscription
Accurate to within 0.1 meter (3.94 inches)
No base station needed
NTRIP and satellite based corrections
Use collected profiles from SSI equipment to determine grind locations
CS7900 GPS equipment can be transferred to other vehicles, mills or grinders
Hardware

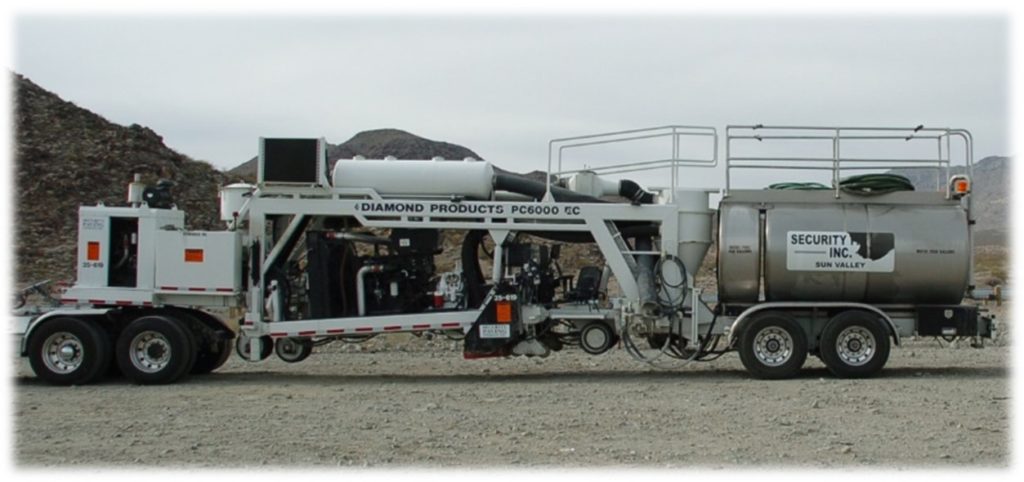

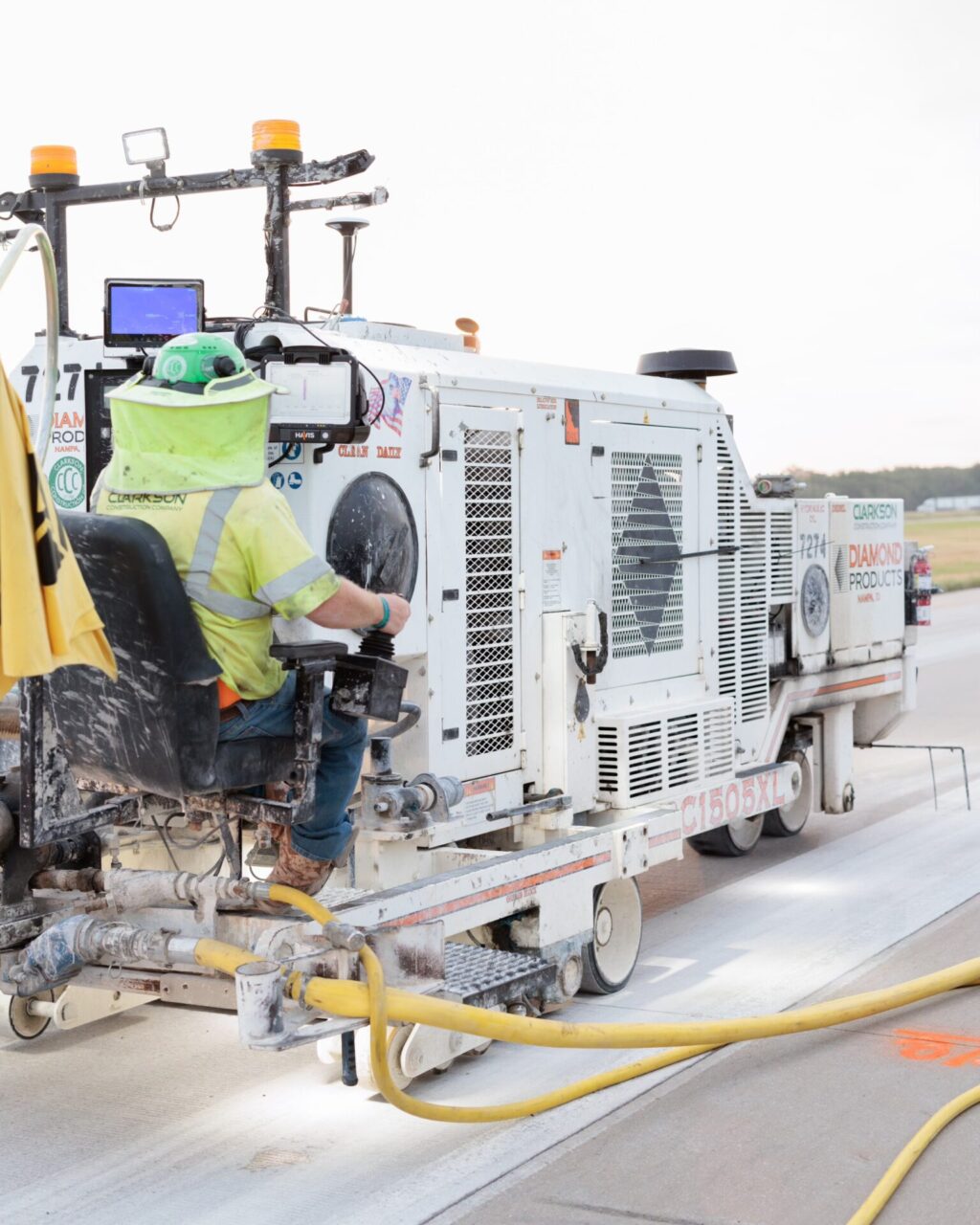

Can be mounted on any milling machine or diamond grinder

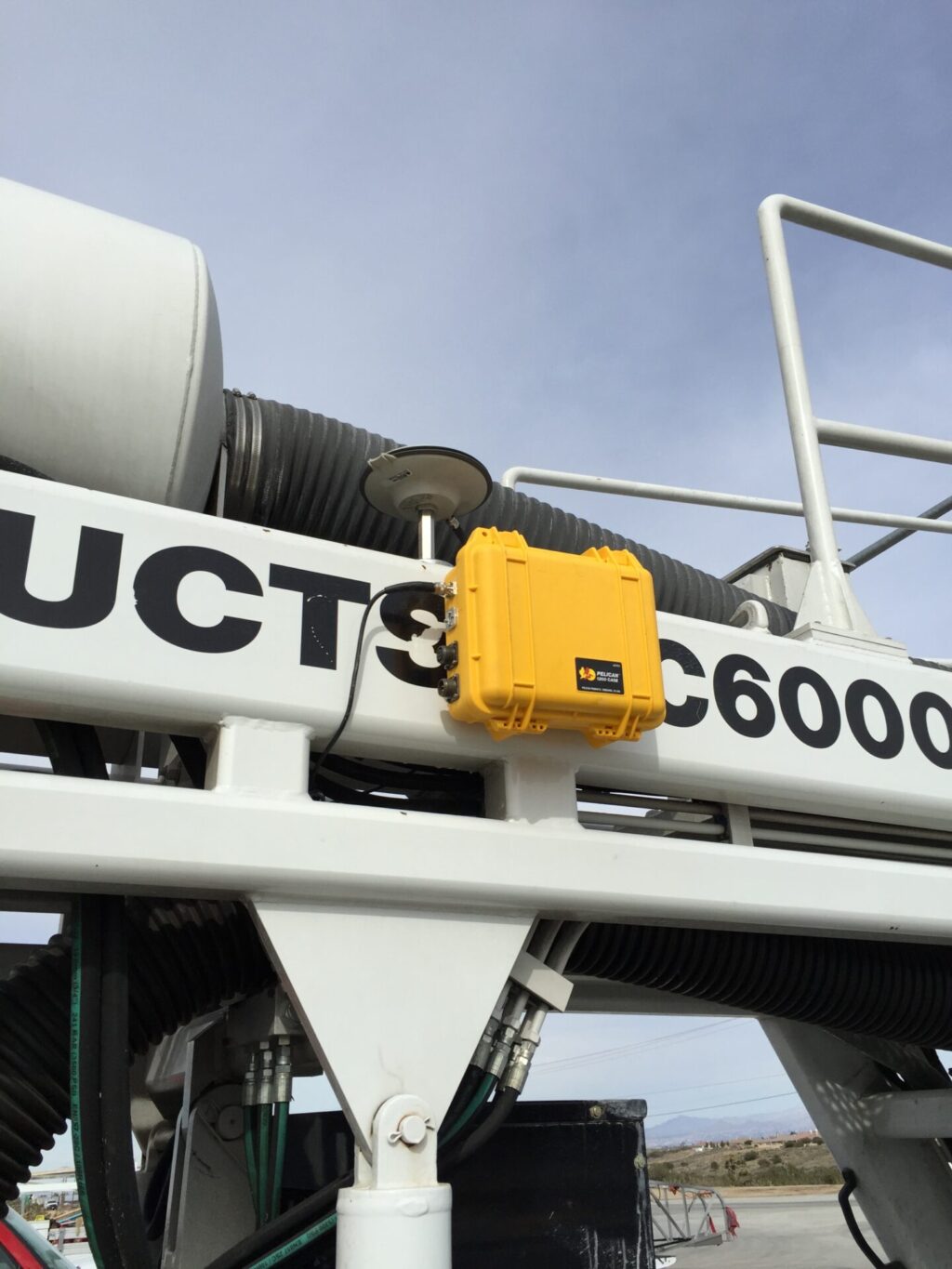

Waterproof Pelican enclosure for GPS and electronics
Pelican case magnet mounted to grinder frame

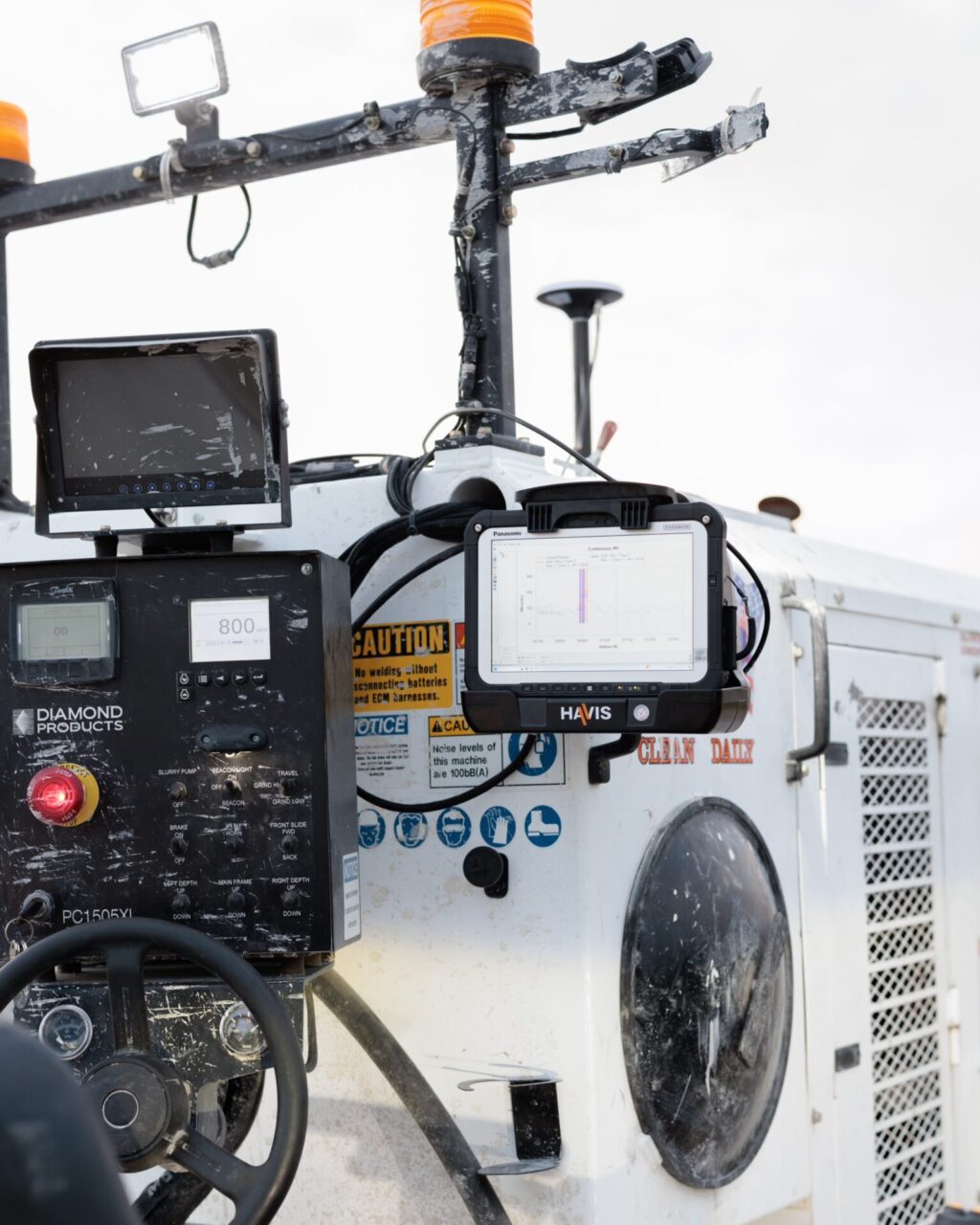

Computer docking station mounts to equipment’s frame
Simple removal of hardware (magnet or pole mounted)

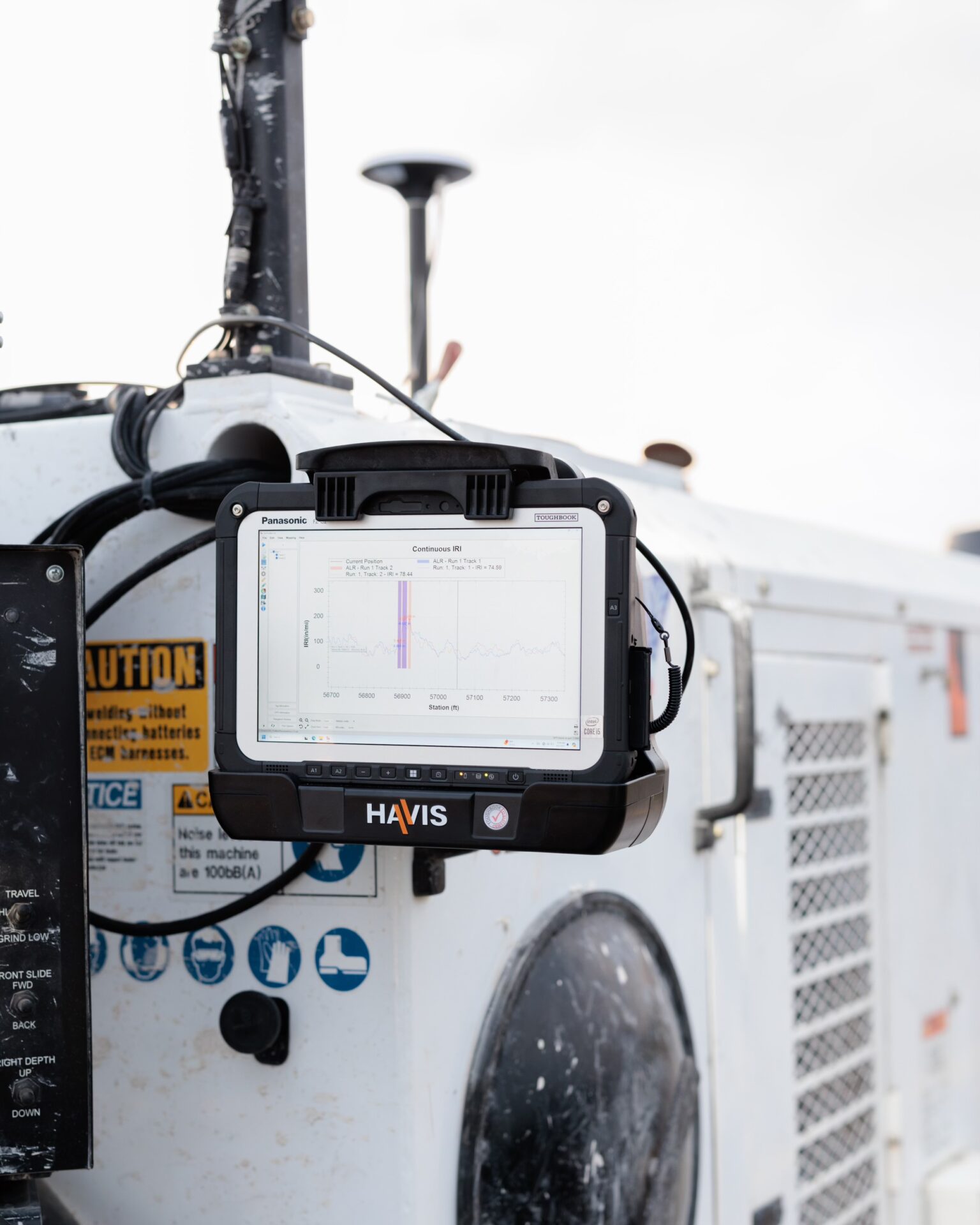

Panasonic Toughbook runs the SSI Profiler software
CS7900 can charge from a 12VDC cigarette plug on equipment
CS7900 case also charges the Panasonic Toughbook
Software
Uses the profile data and GPS collected with an inertial profiler or profilograph system
Can import ProVal grinding locations (IRI, MRI, etc.)
Active display of exact locations to begin and end grinding; also shows height of trace peaks
Displays current position by GPS and linear distance to next and previous grind locations
Locations of grinding can be merged longitudinally and transversely
View single or dual graphs (profile, continuous IRI)
Zoom/pan mode for adjustable trace viewing
Files with grinding locations are small: ~1MB/mile
Data can be transferred to the grinder in under 5 minutes by USB
Grinder operator does need to manually adjust the GPS-tracking system during grinding

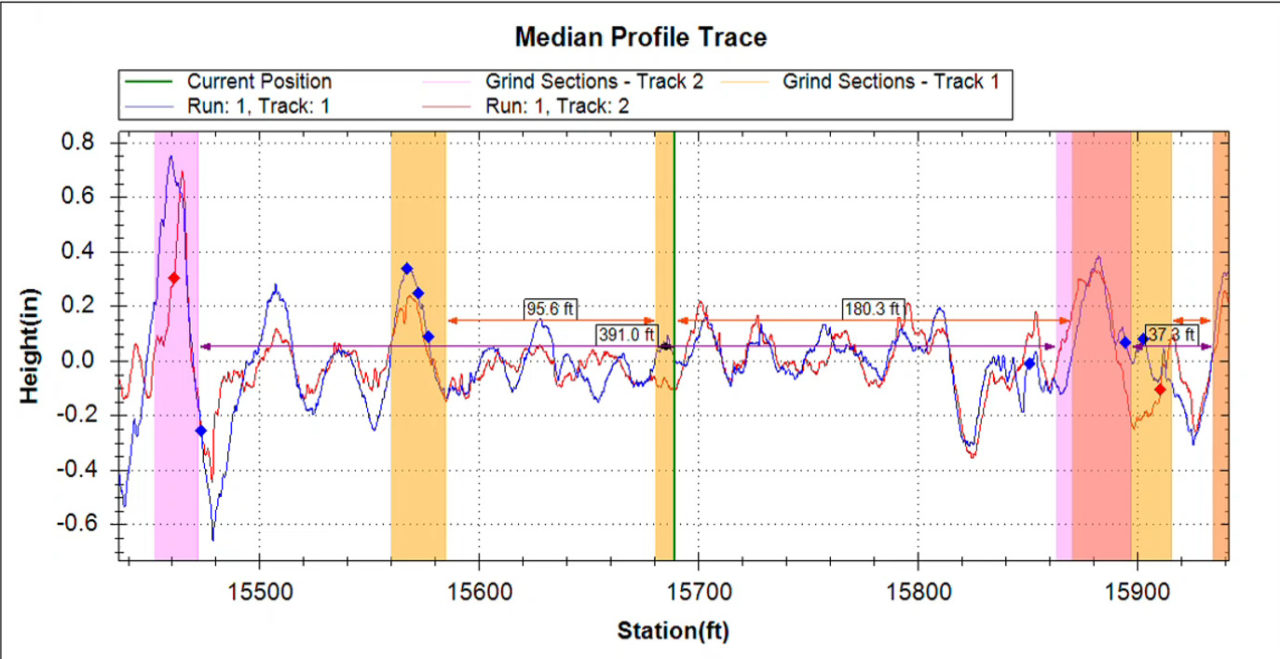

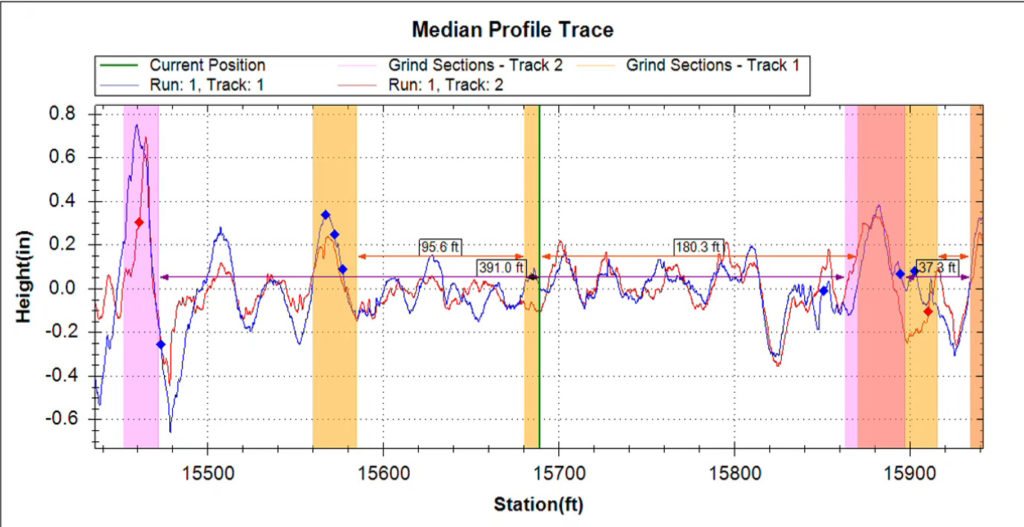

Current location displays on the elevation trace or continuous IRI plot
