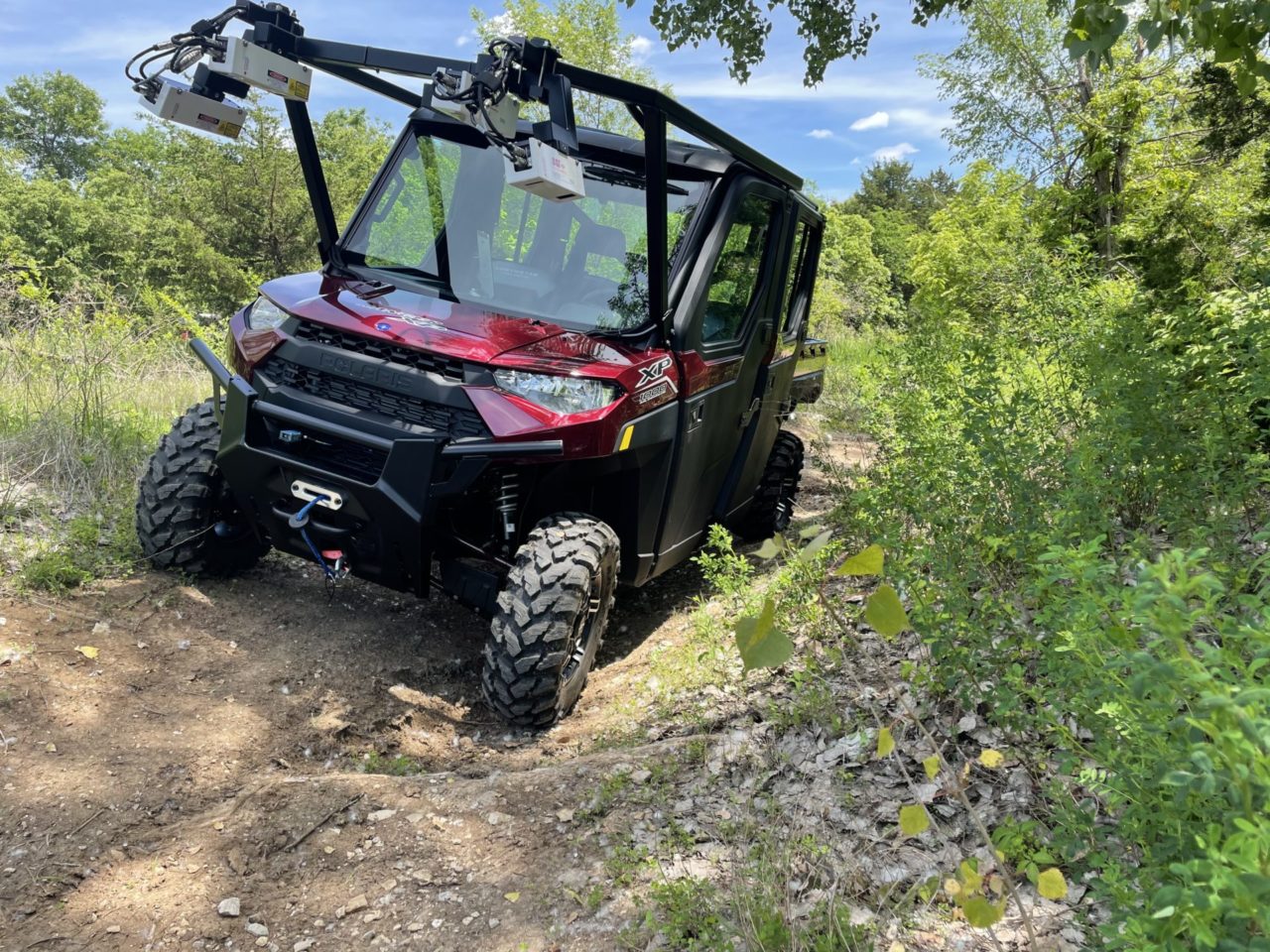

For off road scanning nothing is more powerful and versatile than the CS8770. Build on a frame that can traverse rough terrain, the CS8770 scans the ground surface with sampling intervals down to 5mm x 5mm (typically 2″x0.5″).
Once the data is scanned the output is an LAS point cloud file or extracted path lines. Pairing the data with SSI SurveyCorrection software, the point cloud can be aligned with surveyed points correcting the surface to be within millimeters of the reference points.
CS8770 Off Road Scanning System
Hardware
Military grade IMU
Use one laser or up to six lasers to measure ground surface

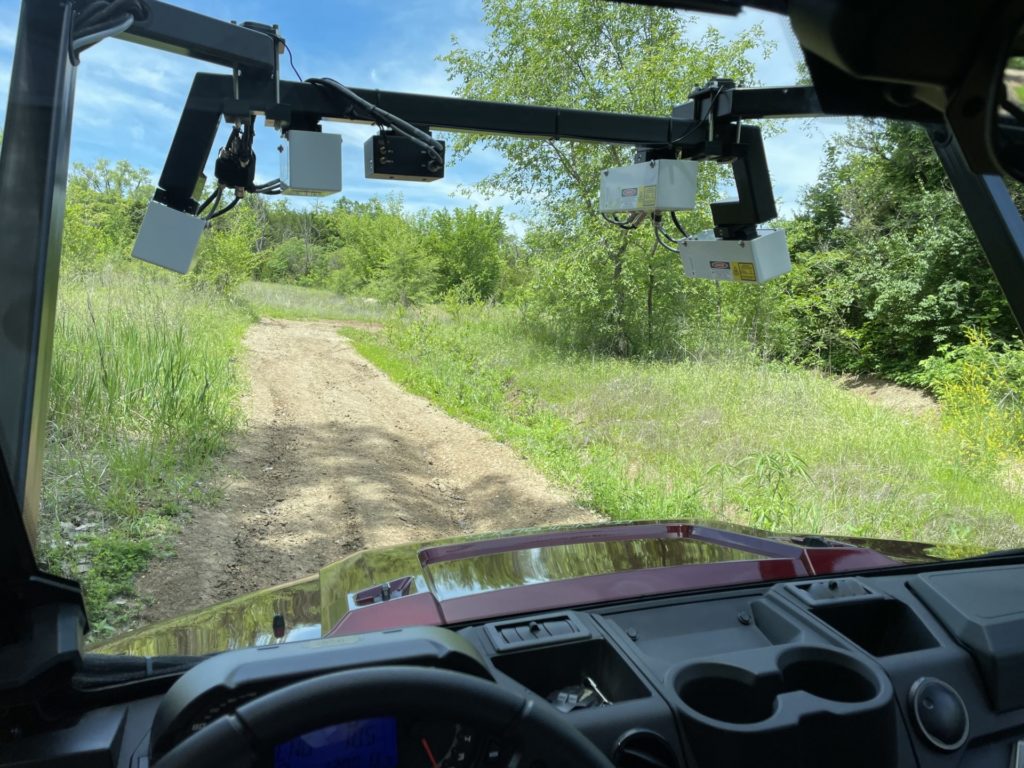

Typical configuration is 4 lasers with ~8 foot measurement span
High standoff laser sensors for ground reference

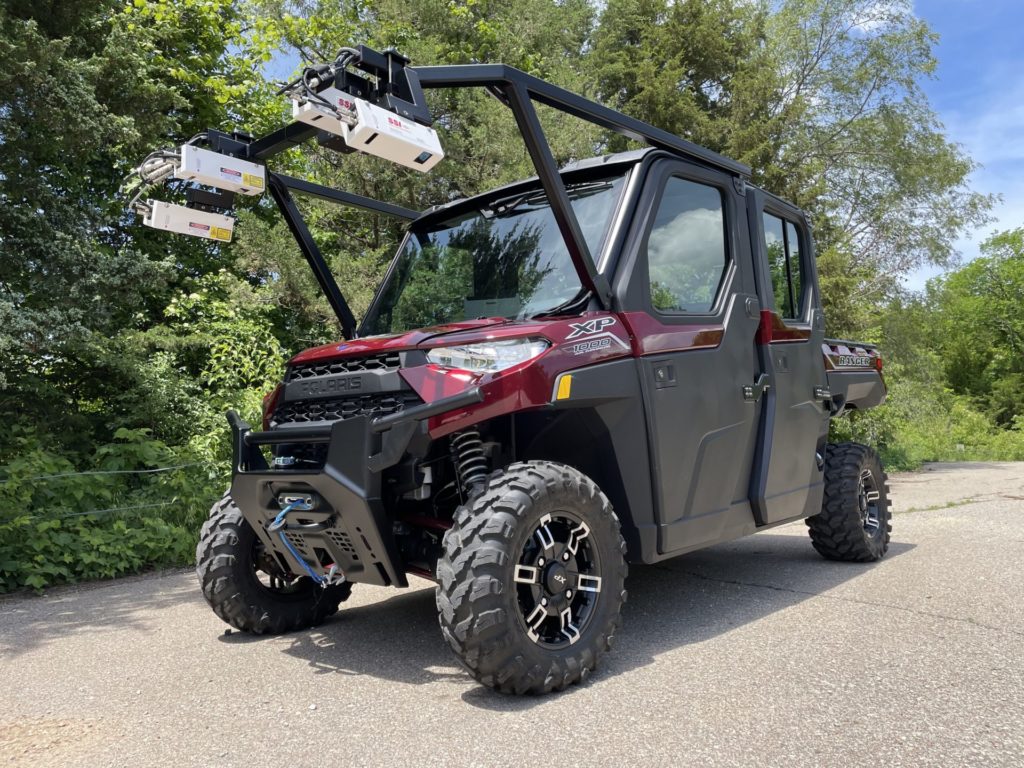

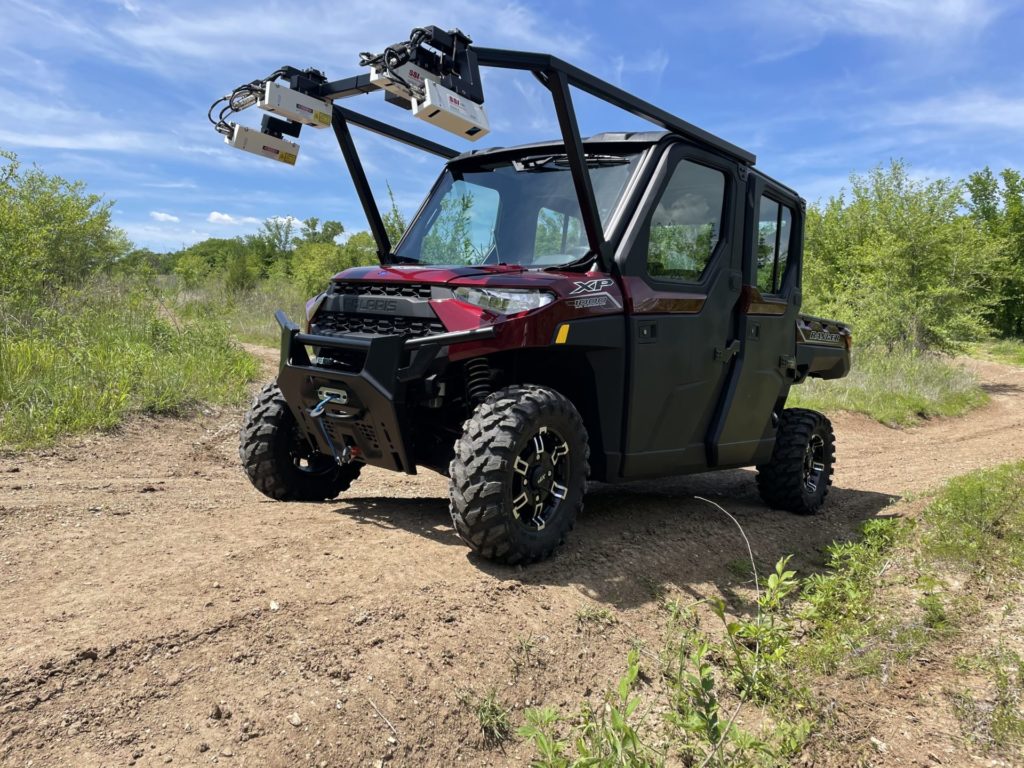

Polaris Ranger host vehicle recommended
GPS-DMI or INS-DMI
Laser shipping case

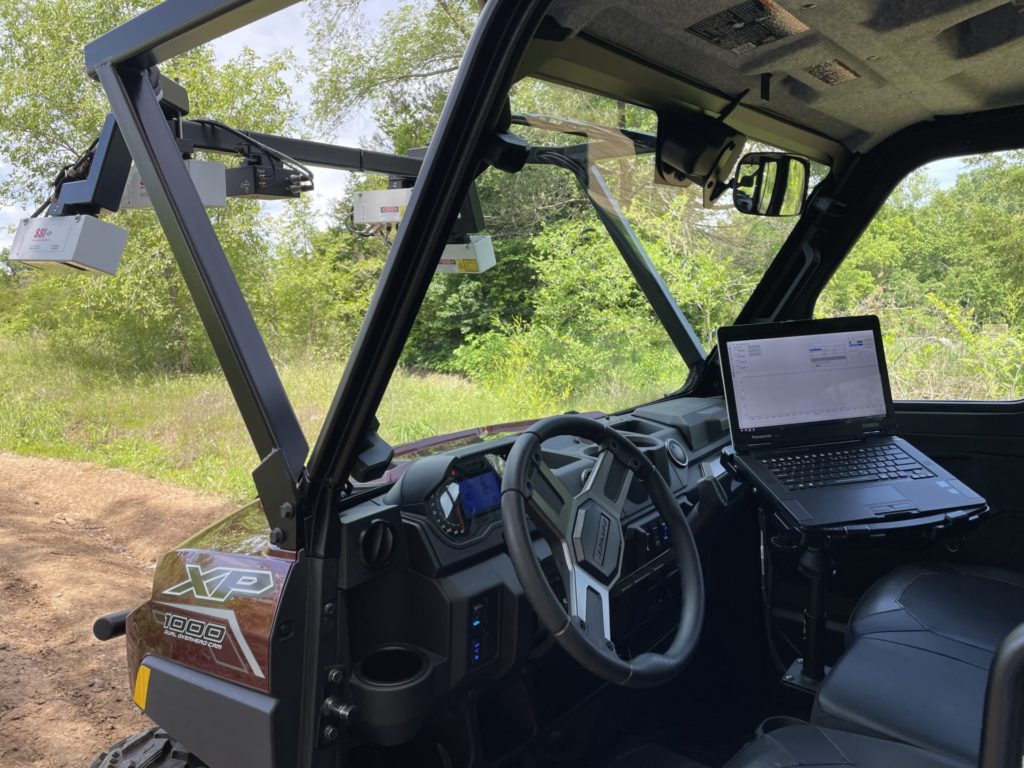

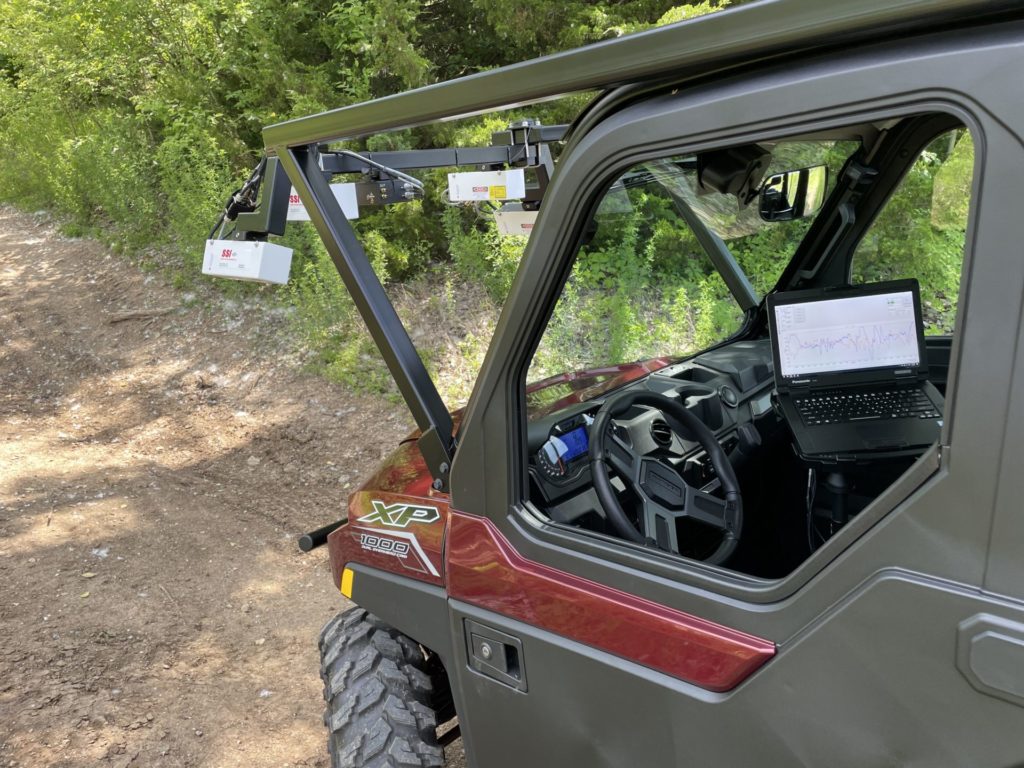

Laser mount hardware fixed to vehicle frame
Software
Point cloud, rutting, or transverse profiles
Resolution down to 5mm x 5mm
INS-PPK processing within SSI Profiler for high accuracy
Base station required
Can merge elevation correction points for higher accuracy
Export rutting into csv or PDF
Export transverse profiles in point cloud format such as LAS
