Collect Accurate Grades and Cross Slopes on Rough Terrain
At a Glance
Collect grades and cross-slopes with a sonic or laser sensors. The highly portable CS9470 incorporates a military grade INS system with optional PPK corrections. The PPK corrections allow for more accuracy over longer elevations by counteracting the drift of the INS sensors and accelerometer.

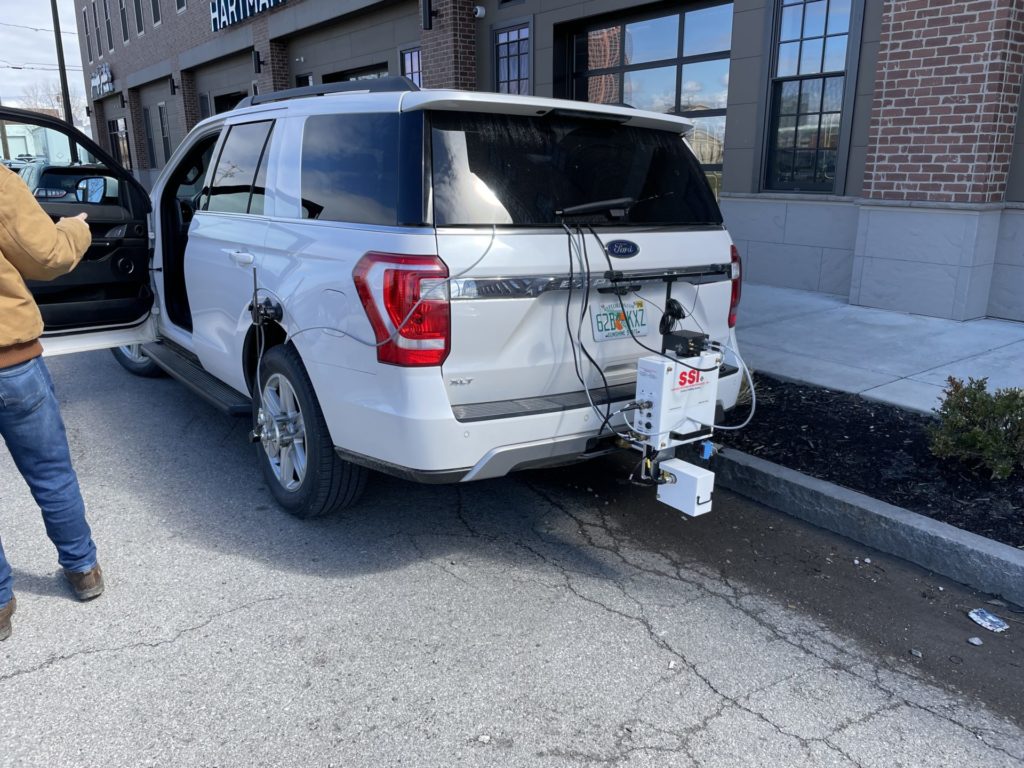

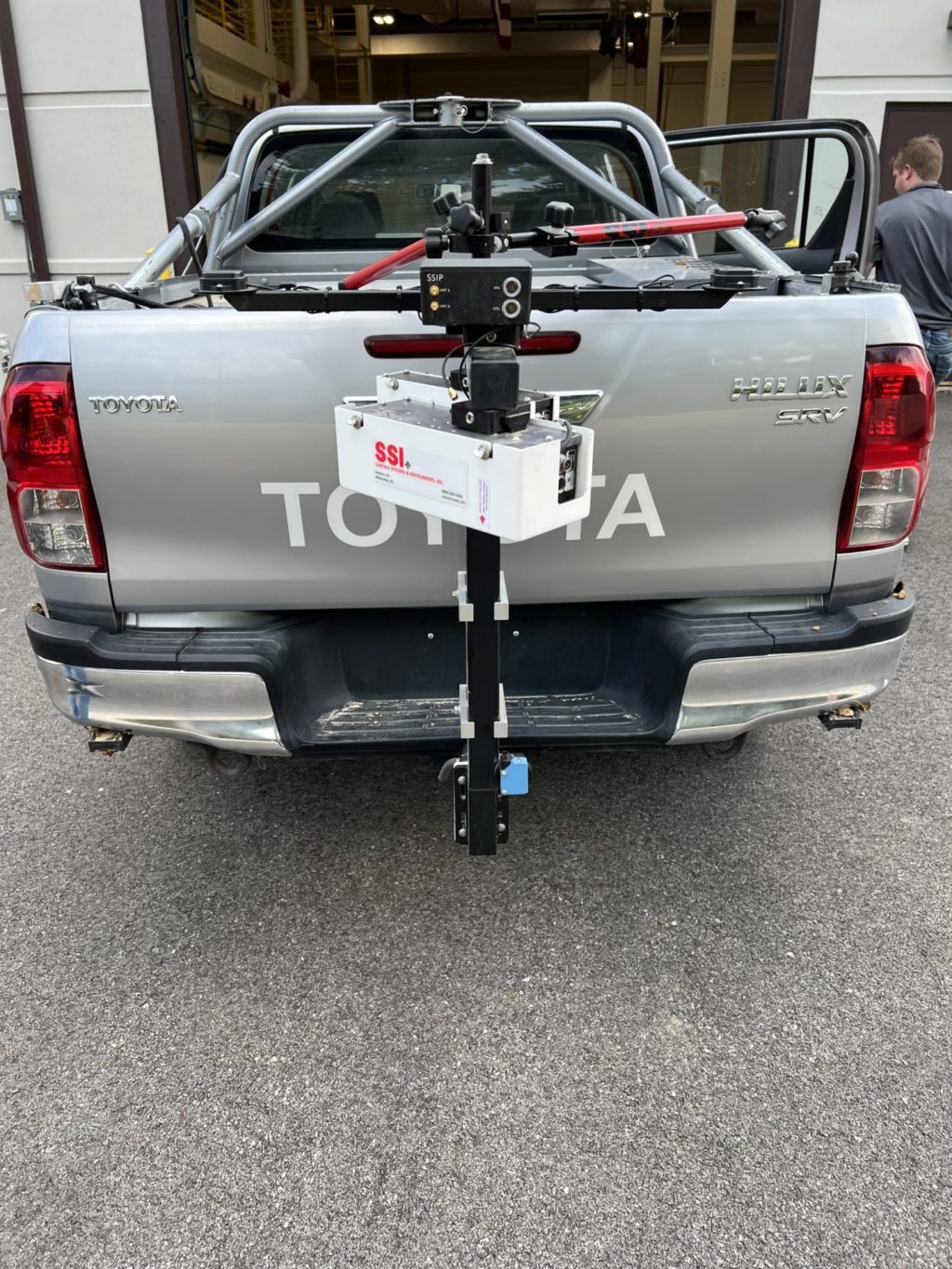

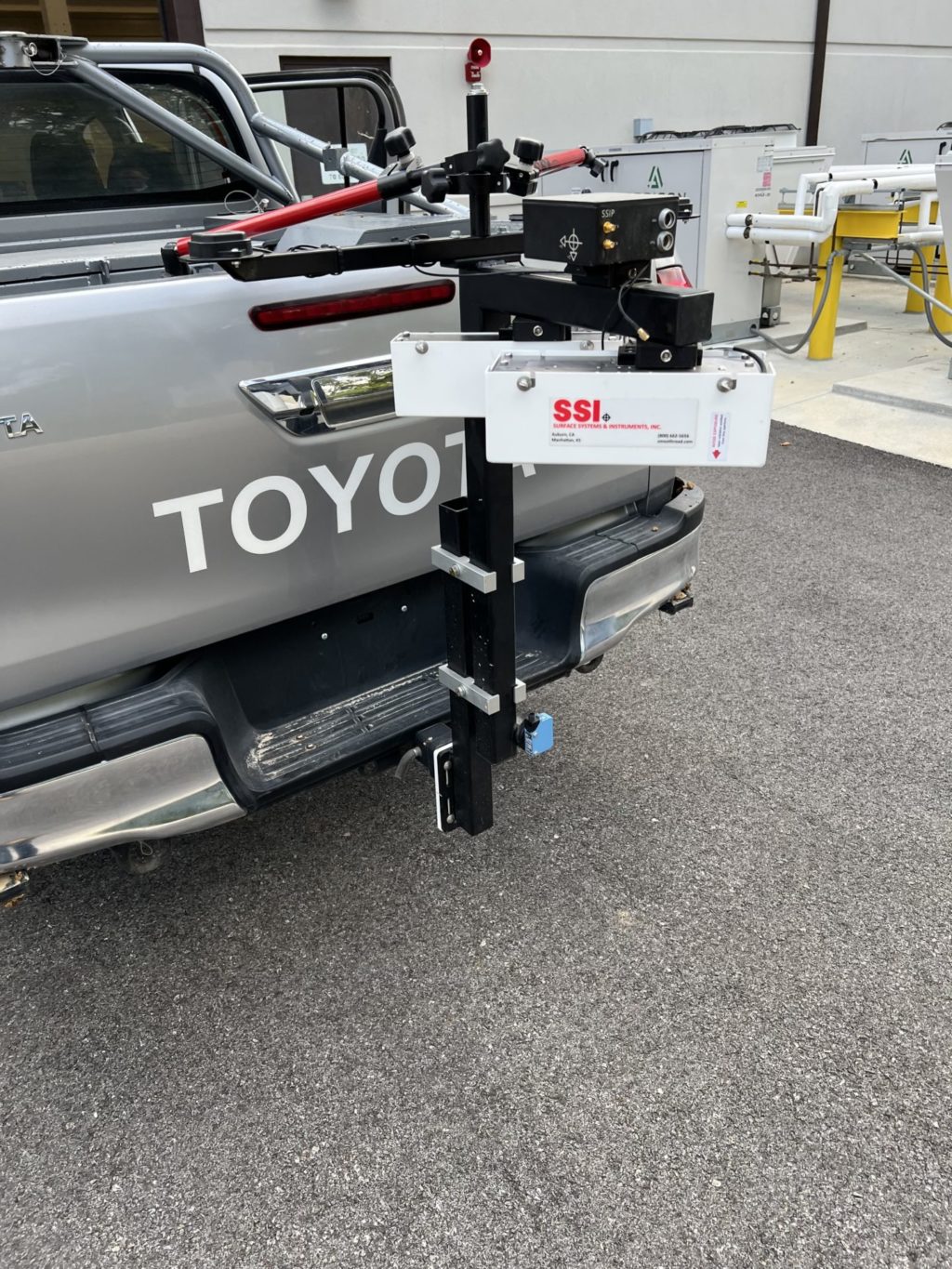

The collection speed is 5-74 mph, but typically the data is collected on gravel roads and the speeds are near 30 mph. Mounting hardware options include tow hook clamps or a 2″ hitch receiver coupler.
The CS9470 can export the path data to CSV or to a kvalue report with the settings for vertical curves within SSI Profiler.

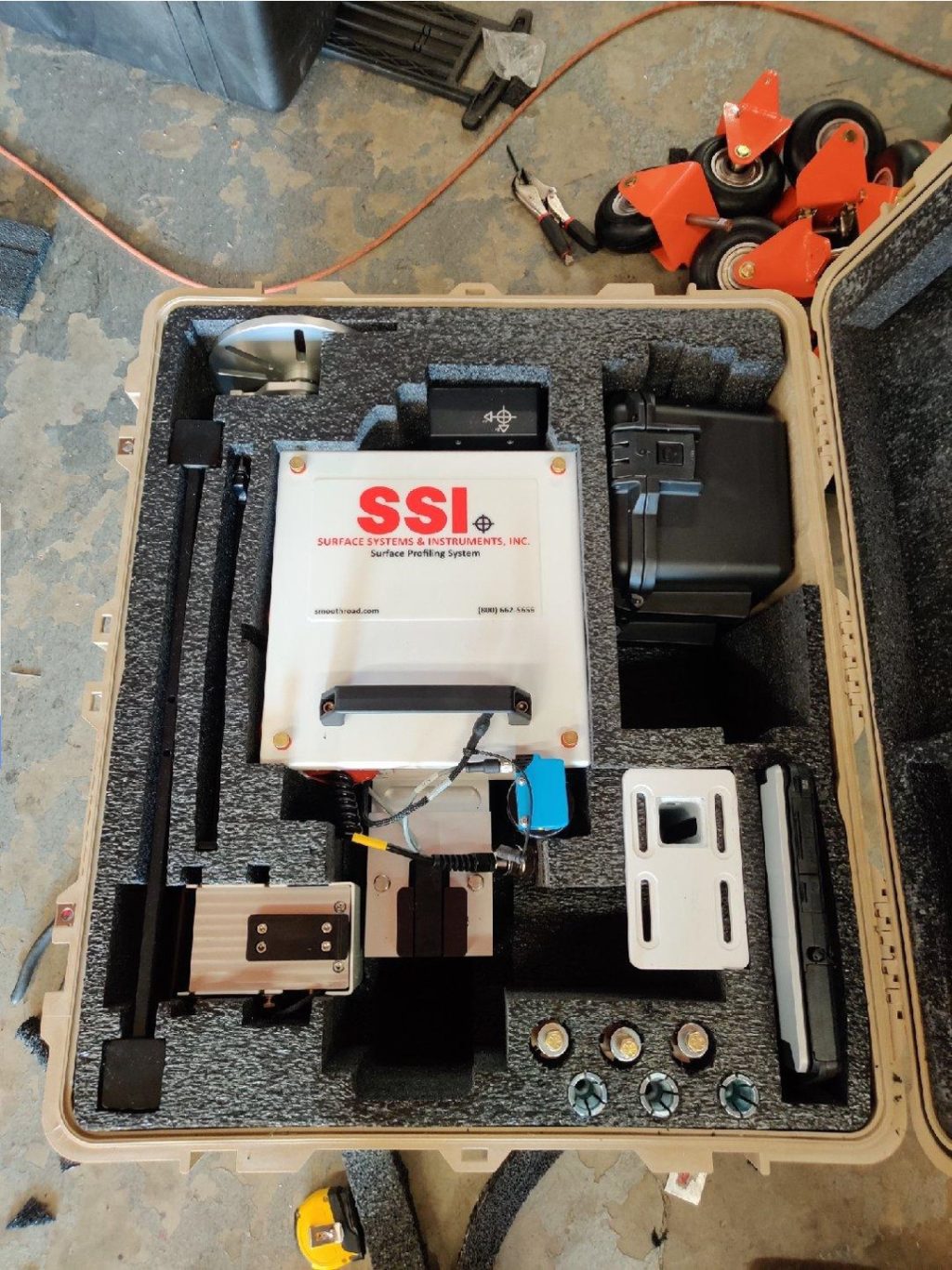

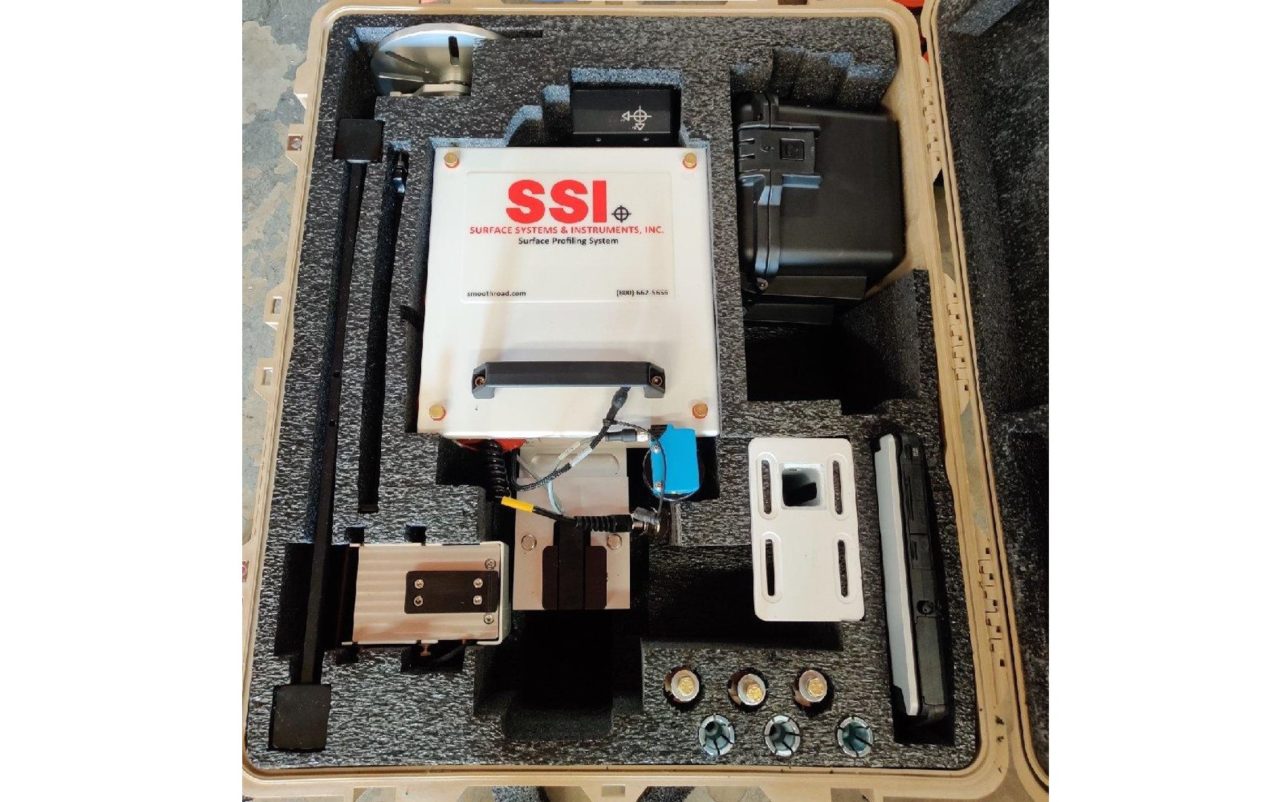

CS9470 within its Travel Case
Hardware
Mounts to tow hitch or tow hooks
Portable design
May use sonic or laser for ground reference
Military grade IMU
Custom shipping case
Software
Collect data within SSI Profiler
Export Kvalues, IRI, MRI, HRI, PRI
Export type of Excel, GIS, PDF, PPF, ERD
PPK INS processing within SSI Profiler for accurate survey elevations with a base station
Standard Options
SSI Profiler for editing, reviewing, collecting and exporting data
GPS receiver for position data
Export to PDF, Excel, GIS, PPF, ERD
Mount hardware to tow hitch
Available Options
GPS-DMI or INS-DMI
Medium resolution GPS receiver for SBAS/WAAS corrections
High resolution GPS receiver for down to 10mm horizontal accuracy
