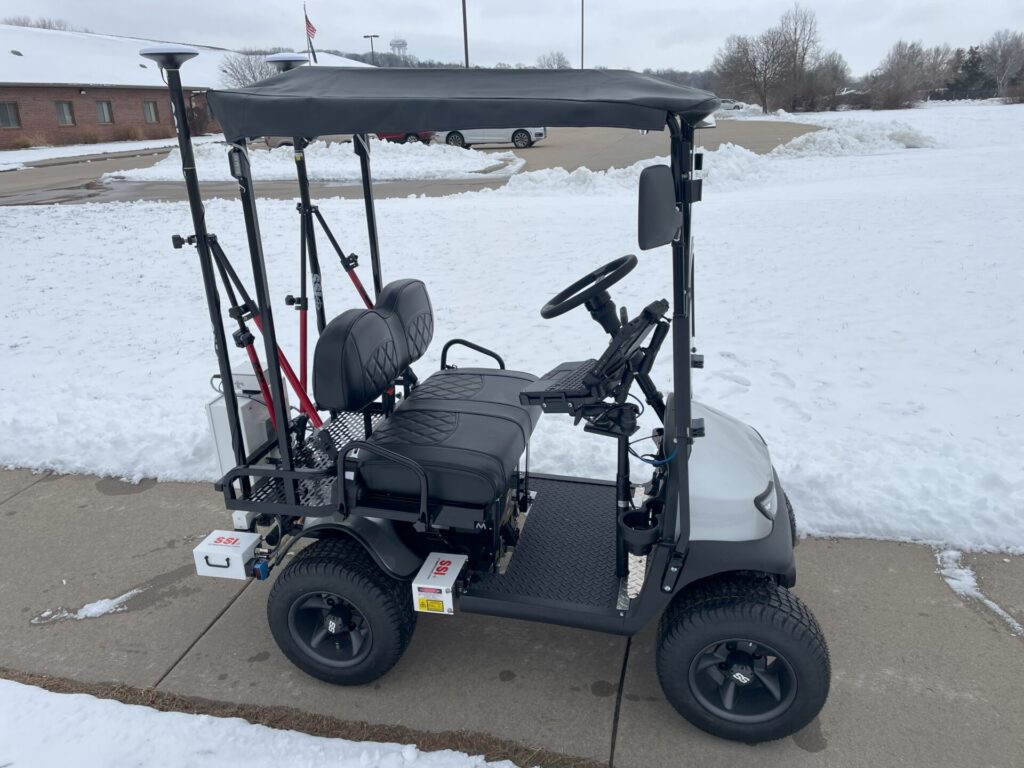

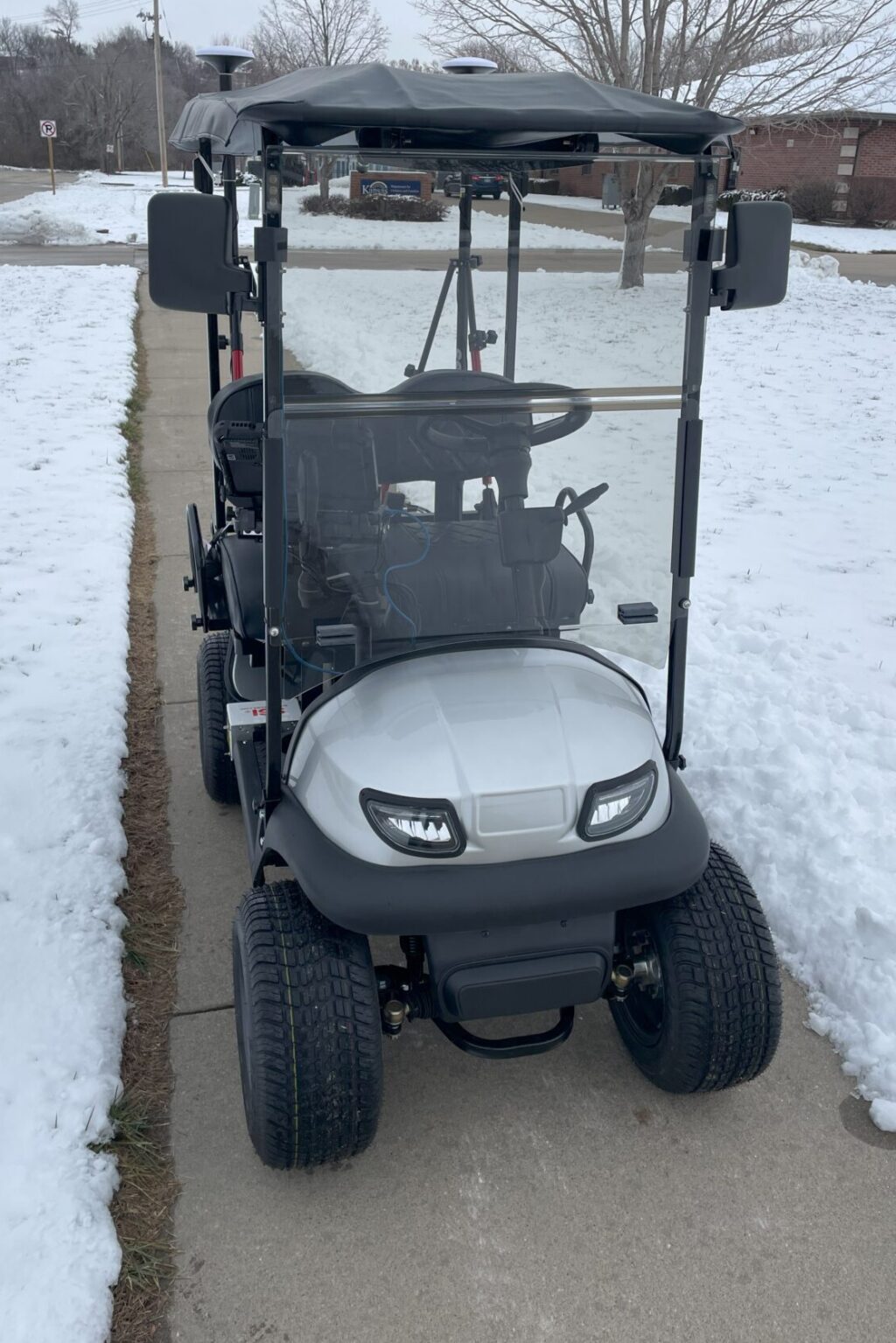

The electric cart platform is 32-inches (81cm) wide to fit on almost every sidewalk. With an extended battery system the cart can collect more than 50 miles, which is multiple days of data collection for ADA sidewalks.
All of the features within the SSI Profiler system to export data are available to all CS8600 ADA profilers.
CS8600-C
Collecting Sidewalk Data
Quickly collect sidewalk data at up to 15mph. Report cross-slope, running grade and bevel heights along with a profile collection that can be analyzed with IRI or straightedge.
Raw data or out of compliance locations can be exported to GIS, PDF, Excel, or KML. All of the profilers collect longitudinal profiles to report defects per a straightedge simulation. Most ADA systems are setup with a ROW camera that integrates images with the collected data at a user specified interval.

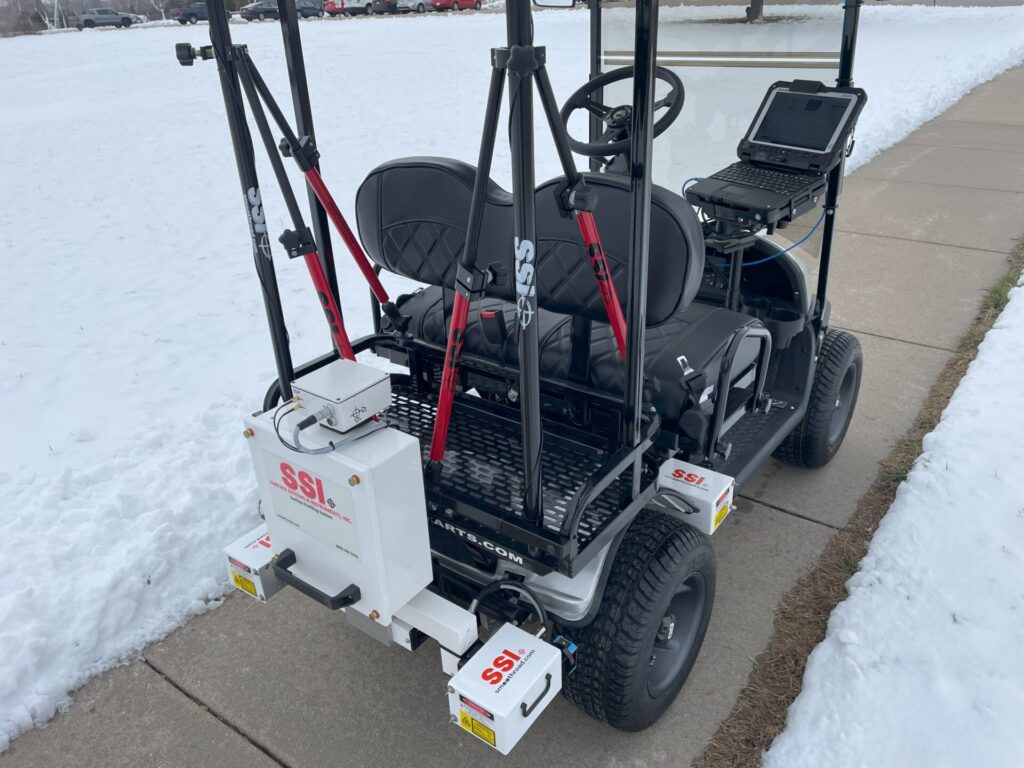

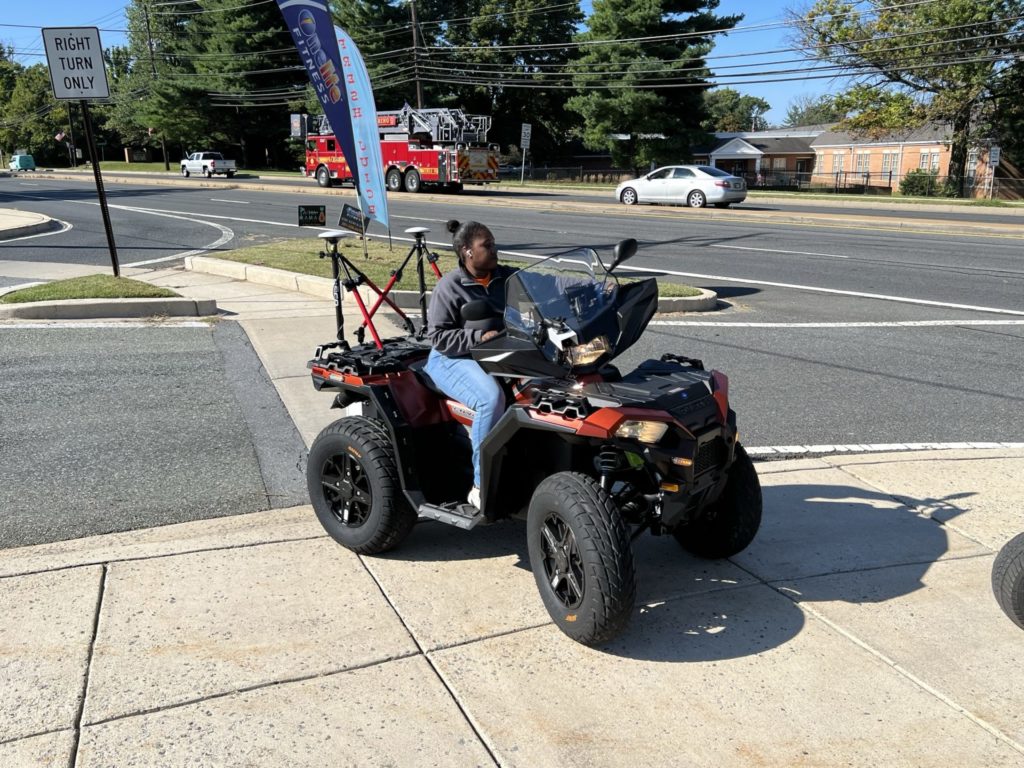

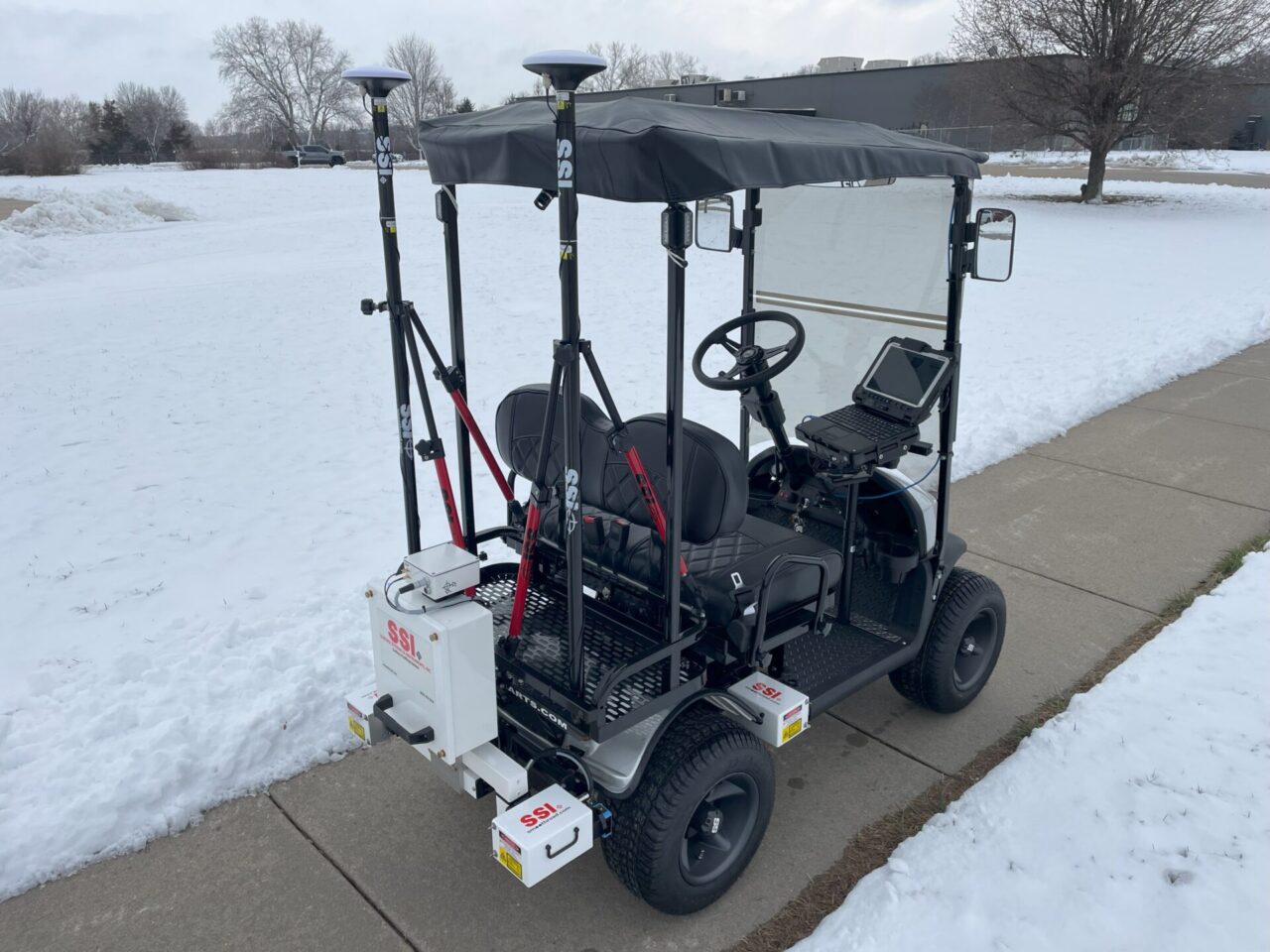

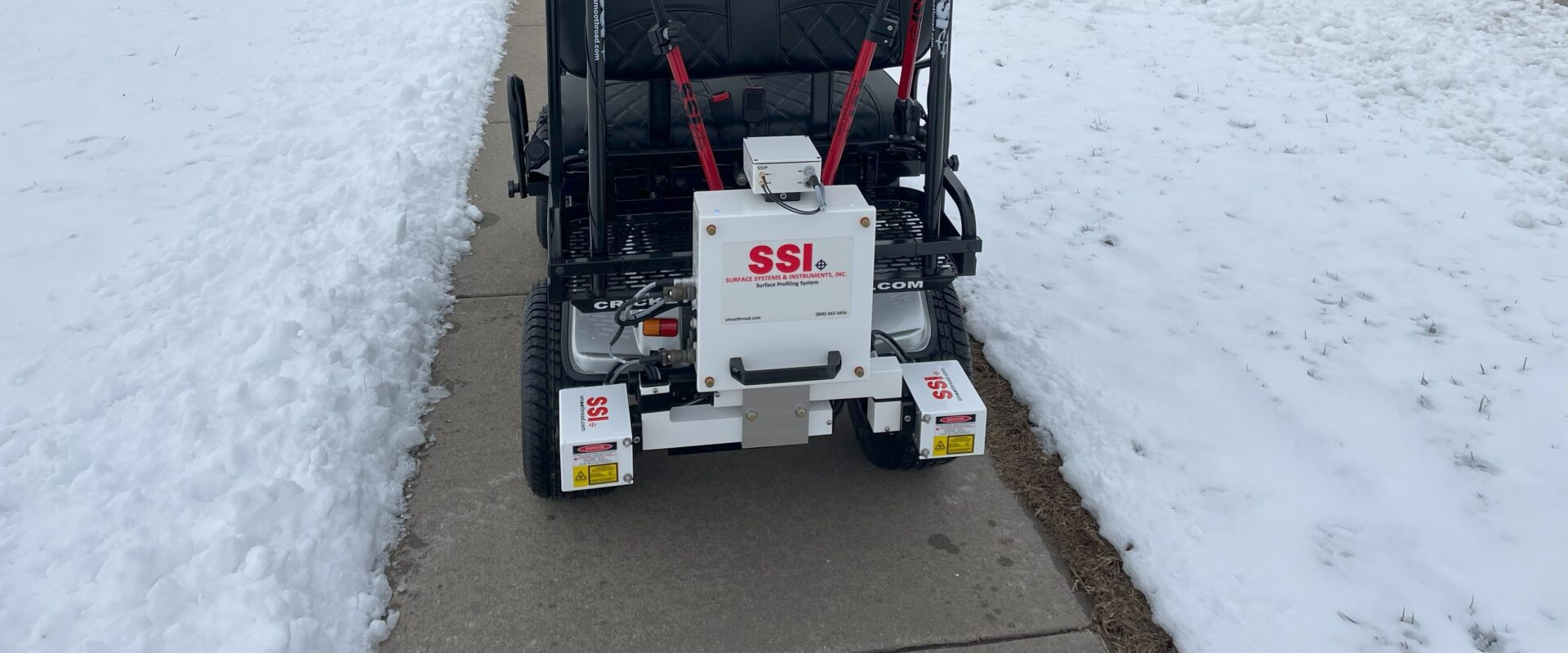

The CS8600-Carts can be outfitted on an a gas powered ATV or an electric vehicle. The electric vehicle has a range above 50 miles. Both vehicles use three lasers for a completely non-contact collection device.

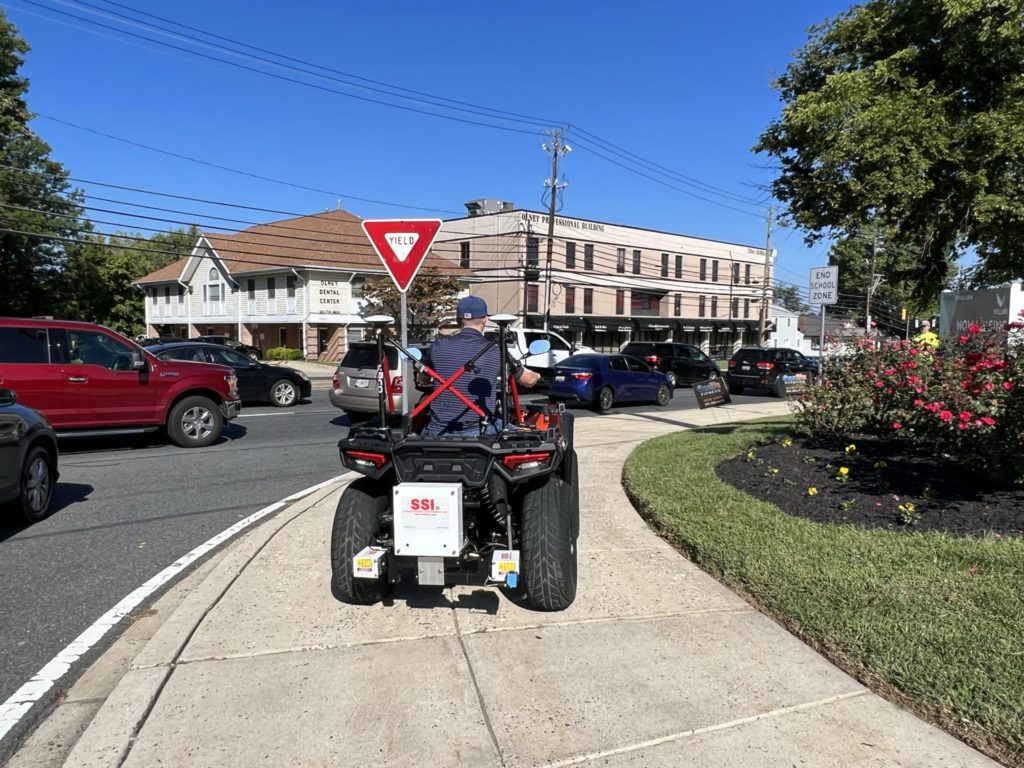

CS8600 In the Field
Build In Hardware

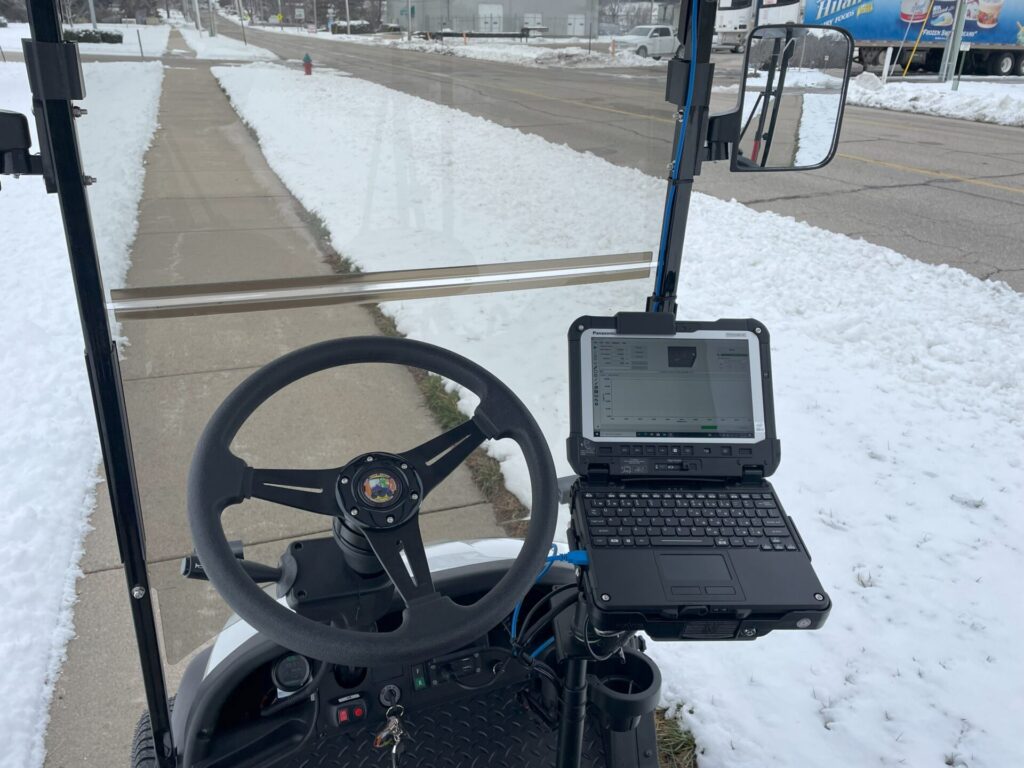

The electronics and the sensors are built into the frame of the vehicle to increase productivity and protection of the instruments. The electronics, computer and vehicle are all powered by the onboard battery. Extended capacity batteries are available.
Refined Software
+/- 5g rated accelerometers with 0.0001g accuracy
Wide beam laser available
Easy to follow calibration procedures
0.04% distance measurement accuracy
SSI Profiler software includes hot keys, GPS Navigation, and rewritable data
Report multiple ride indexes: IRI (International Roughness Index), Mean IRI (MRI), Half Car Ride Index (HRI), Profile Ride Index (PRI), Ride Number (RN)
Multiple outputs for Areas of Localized Roughness: IRI based roughness based on user specified thresholds; Rolling Straightedge, Profilograph must-grind bump template, Texas 1001-S localized roughness
Export data into (PPF, ERD), PDF, Excel, CSV, PRO, Shapefiles, and Text
Data files are encrypted for security
Review all collected data within the SSI Profiler program
SSI Profiler Software
Reports IRI, MRI, HRI, PRI, RN, and Localized Roughness (with adjustable bump and dip templates)
Instant test results and viewing of profile traces and reports
Outputs longitudinal profile, elevation data, slope, simulated profilograph, raw strip trace, ERD/PPF (for ProVal), and PRO formats
Multiple trace reporting allows cross-surface analysis of parallel profile traces (patented by SSI)
Append data to existing files for comparison of original surface condition with corrected surface
Profile reports and traces available on-screen, in PDF images, Excel (templates supplied), hard copy print out, or electronic formats
Colorized traces and highlights of bonus/penalty profile areas
Encrypted raw data for infinite reanalysis with variable parameters
Data infinitely rewritable with variable analysis parameters (English or Metric units, profile indexes, data filters, localized roughness).
Troubleshooting
Embedded PDF user manual in software
Send Feedback or report issues to SSI staff directly
Real time diagnostics monitor system health and ease support
Desktop license supplied for viewing, analyzing, and printing data
Software updates by self-executing internet download
