CS8600 Ultra Light Profiler

Quickly collect sidewalk data at up to 15mph. Report cross-slope, running grade and bevel heights along with a profile collection that can be analyzed with IRI or straightedge.

The out of compliance data can be exported to GIS, PDF, Excel, or KML. The system can be setup with texture measurement and a ROW camera that integrates images with the collected data at a user specified interval.

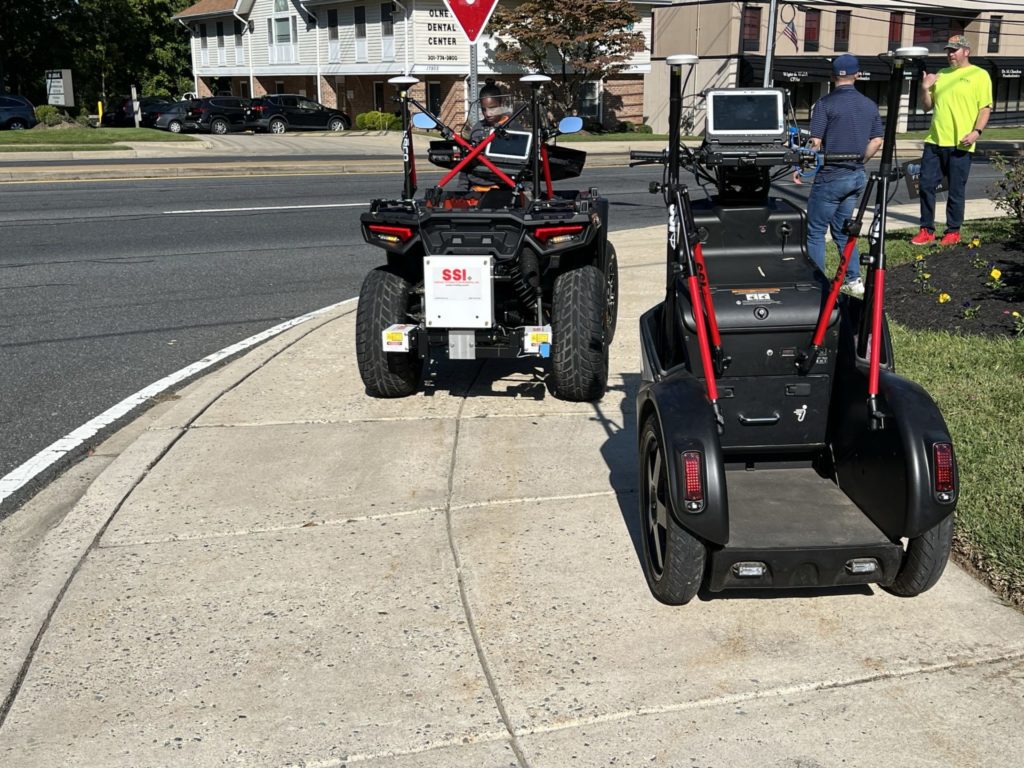

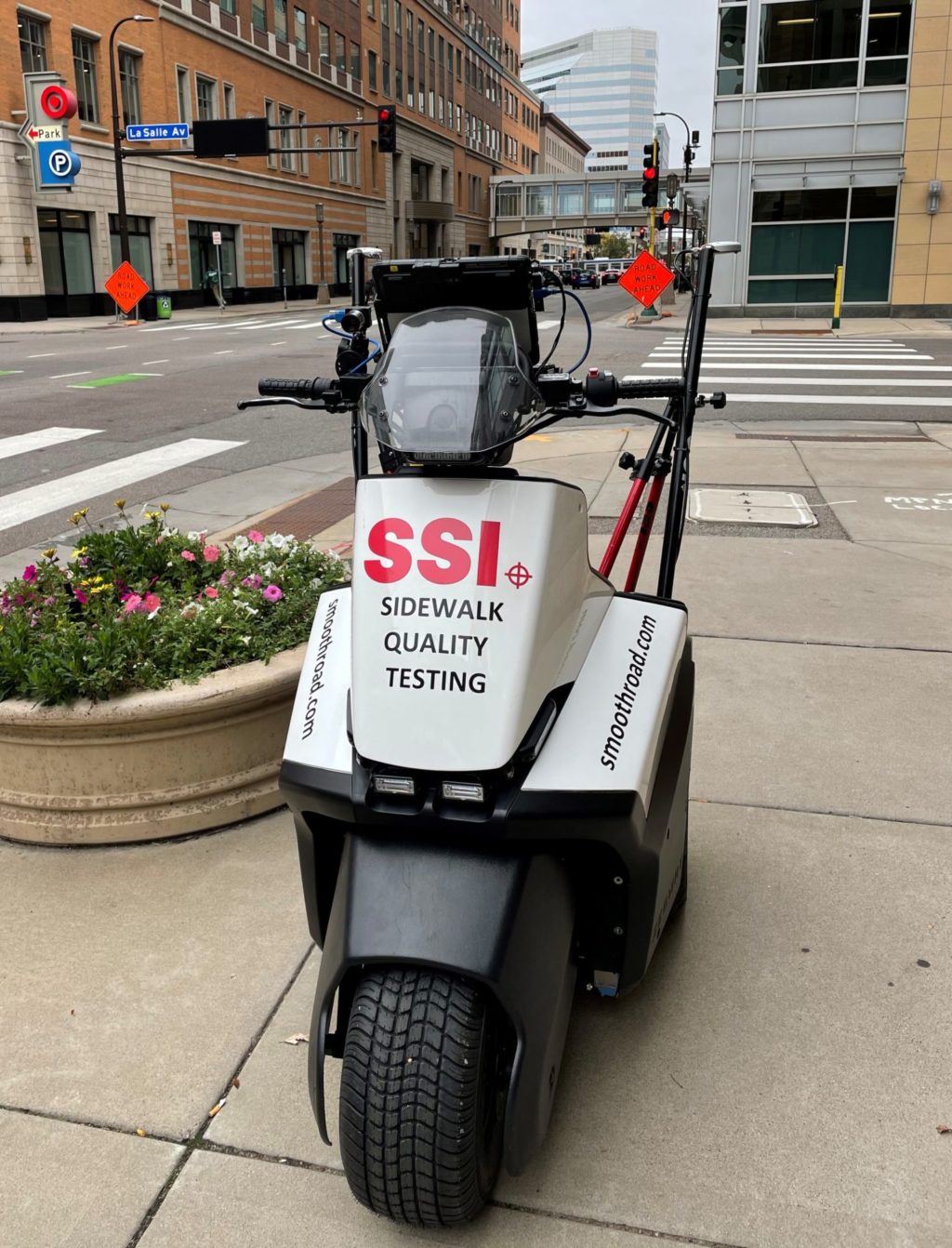

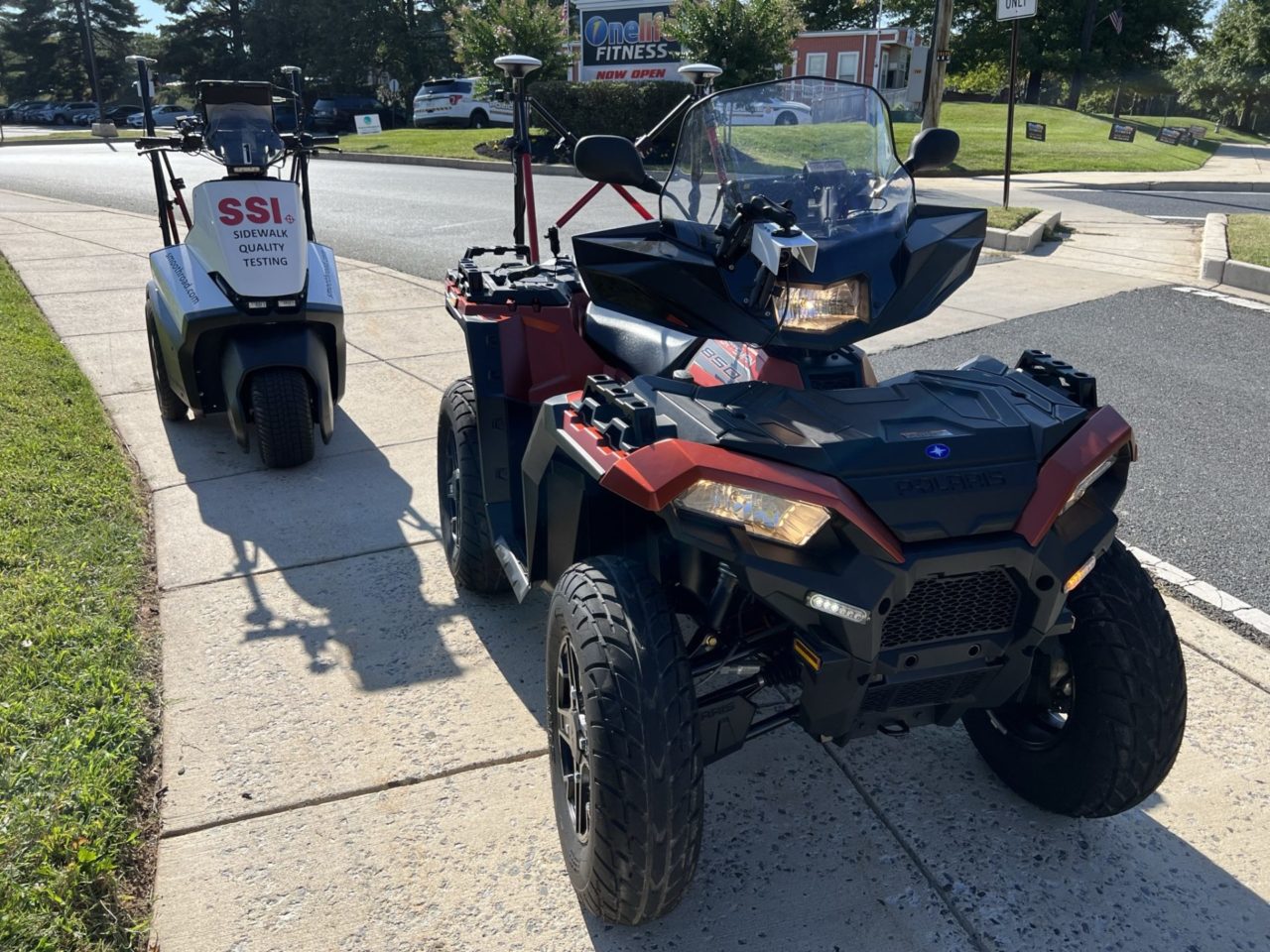

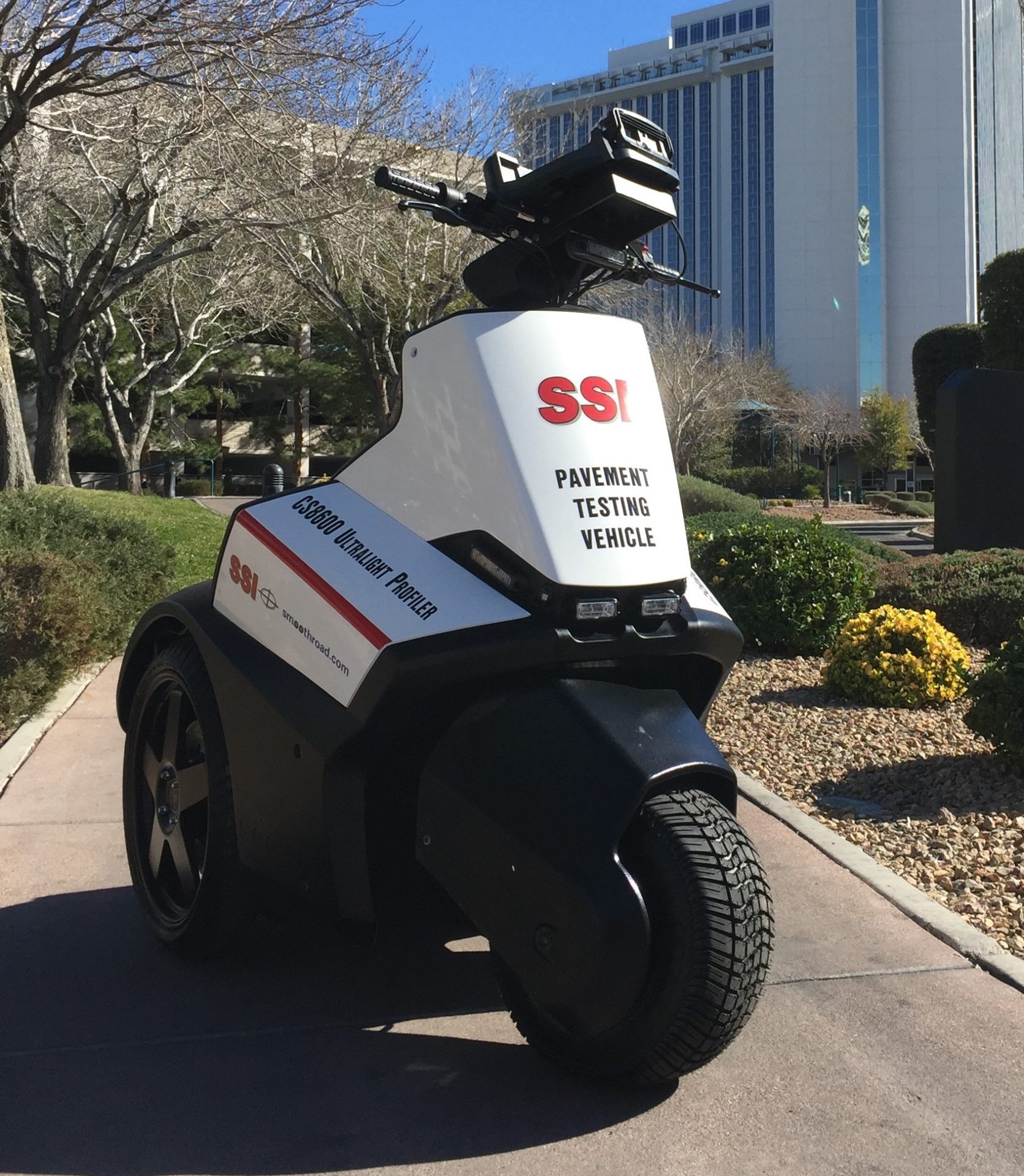

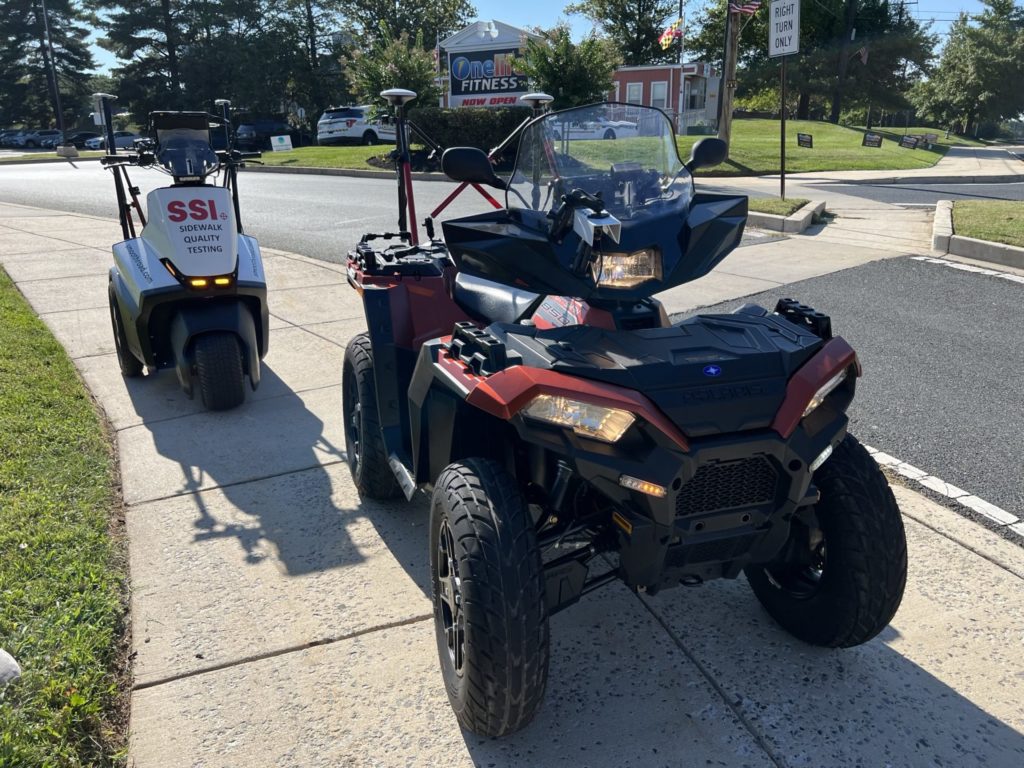

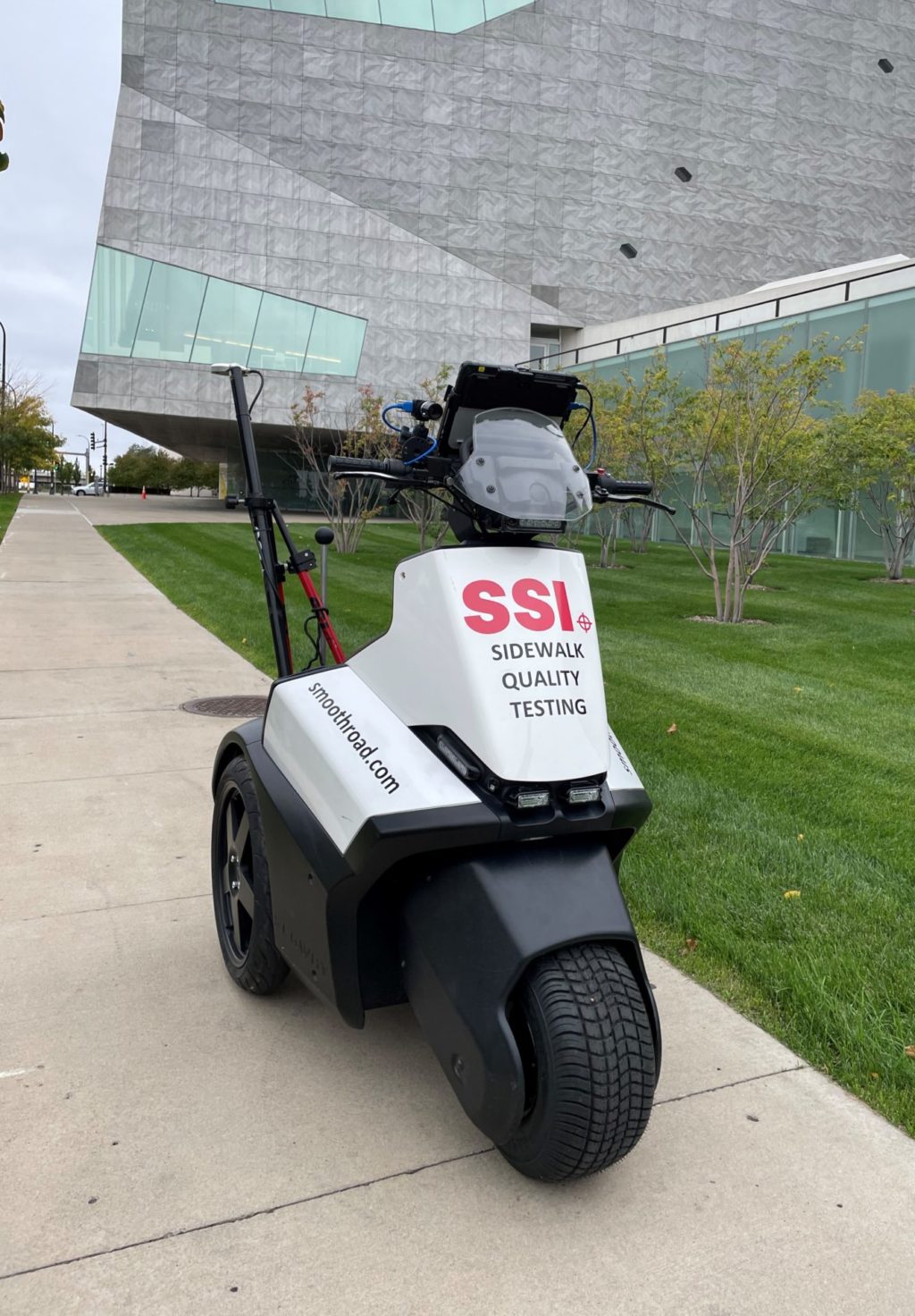

The CS8600 is installed on an electric trike platform.

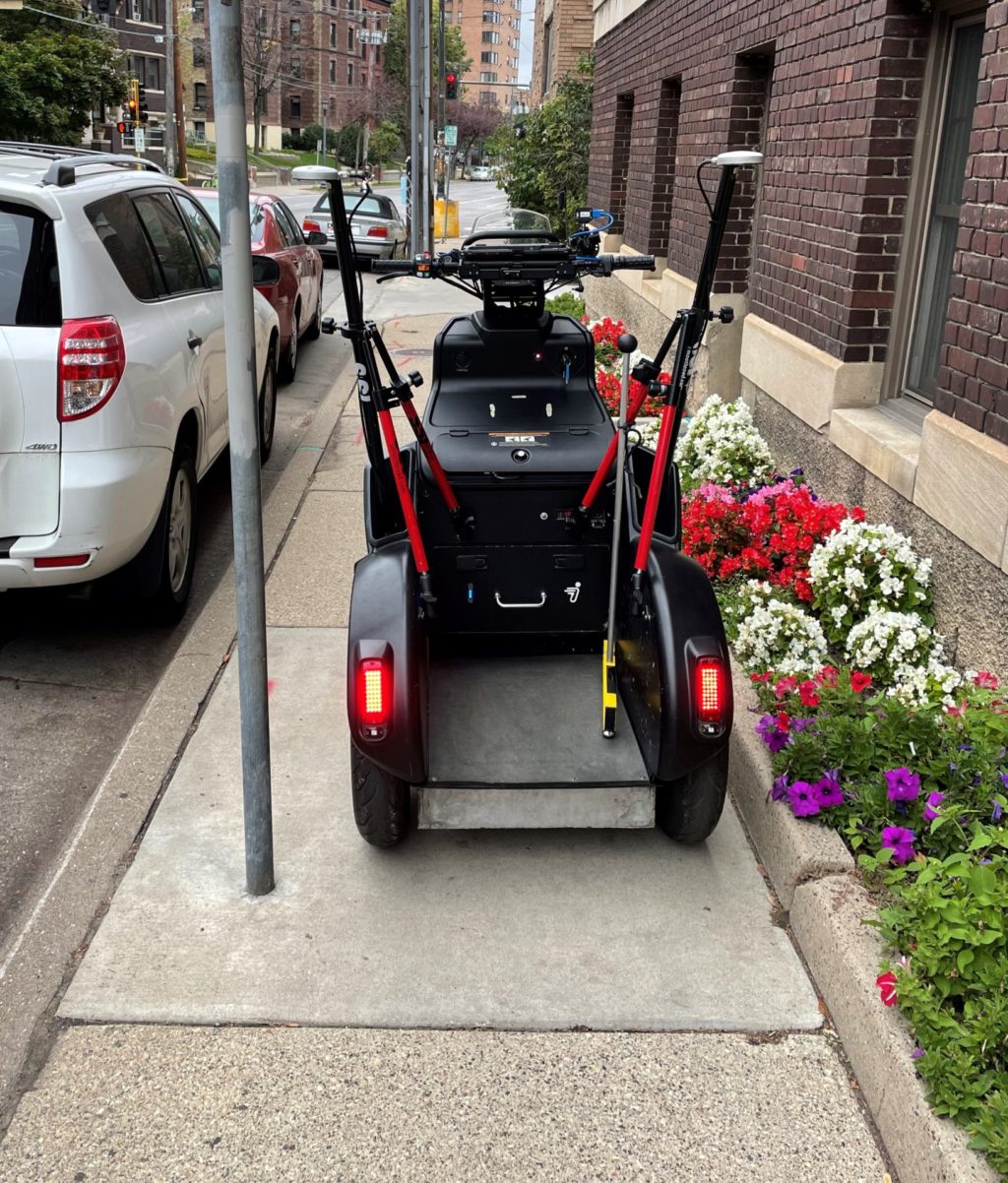

The electronics and the sensors are built into the frame of the CS8600 to increase productivity and protection of the instruments. The electronics, computer and vehicle are all powered by the onboard battery. Extended capacity batteries are available.

• +/- 5g rated accelerometers with 0.0001g accuracy
• Wide beam laser available
• Easy to follow calibration procedures
• 0.04% distance accuracy
• SSI Profiler software includes hot keys, GPS Navigation, and rewritable data
• Report multiple ride indexes: IRI (International Roughness Index), Mean IRI (MRI), Half Car Ride Index (HRI), Profile Ride Index (PRI), Ride Number (RN)
• Multiple outputs for Areas of Localized Roughness: IRI based roughness based on user specified thresholds; Rolling Straightedge, Profilograph must-grind bump template, Texas 1001-S localized roughness
• Export data into (PPF, ERD), PDF, Excel, CSV, PRO, CAD, Survey, and Text
• Data files are encrypted for security

• Reports IRI, MRI, HRI, PRI, RN, and Localized Roughness (with adjustable bump and dip templates)
• Instant test results and viewing of profile traces and reports
• Outputs longitudinal profile, elevation data, slope, simulated profilograph, raw strip trace, ERD/PPF (for ProVal), and PRO formats
• Multiple trace reporting allows cross-surface analysis of parallel profile traces (patented by SSI)
• Append data to existing files for comparison of original surface condition with corrected surface
• Profile reports and traces available on-screen, in PDF images, Excel (templates supplied), hard copy print out, or electronic formats
• Colorized traces and highlights of bonus/penalty profile areas
• Encrypted raw data for infinite reanalysis with variable parameters
• Data infinitely rewritable with variable analysis parameters (English or Metric units, profile indexes, data filters, localized roughness).
• Troubleshooting
  • Embedded PDF user manual in software
  • Send Feedback or report issues to SSI staff directly
  • Real time diagnostics monitor system health and ease support
  • Desktop license supplied for viewing, analyzing, and printing data
  • Software updates by self-executing internet download
  • On-site customer training and support worldwide

• High resolution GPS
  • Horizontal resolution down to 2cm available
• ROW camera
• Macrotexture measurement
• Multiple track profiling
• Extended capacity onboard battery
• GPS-DMI
• IMU for Cross-Slope and Running Grade
