CS9300 Portable Inertial Profiler

The system measures at the most stable point of vehicle’s suspension – between the wheel-base. Simply stated, the CS9100 produces the most accurate and repeatable surface profile data. And we have the certification results to prove it!

• SSI Inertial Profilers Perform Well at FHWA Rodeo at MnRoad
• SSI First to Certify Wide Beam Gocator Laser
• SSI Zero-Speed Profiler Outperforms at ICART Rodeo
• SSI High Speed Device Meets 98% Reference Profiler Requirements
• SSI Certifies with North Carolina DOT
• SSI Zero-Speed Profiler Certifies at ICART
• SSI Profilers Achieve Exceptional Results in Mississippi
• New Stop-and-Go Certifications in California

SSI’s exclusive new technology simplifies urban collections and projects with constraints. Collect at any speed (0-100 mph) with a Zero-Speed upgrade.

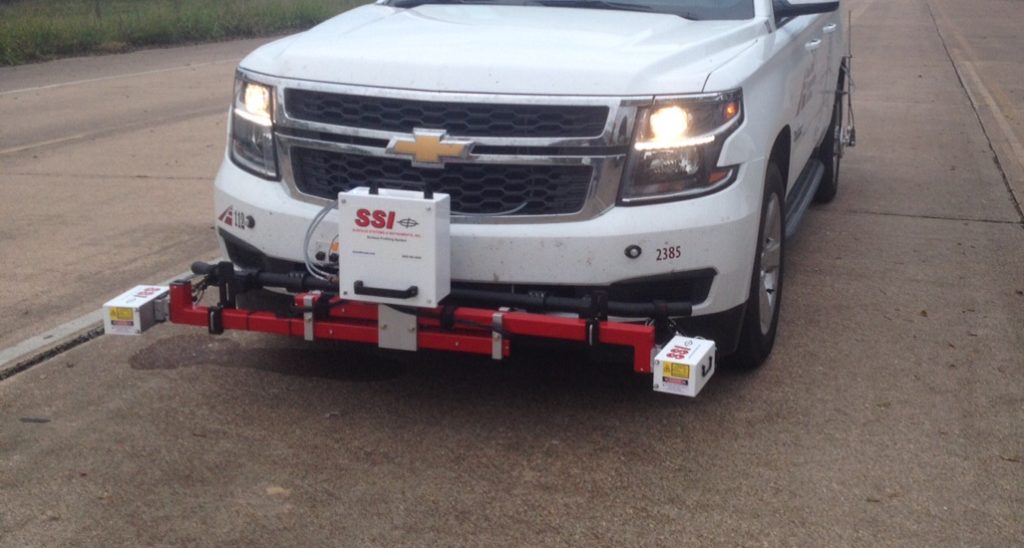

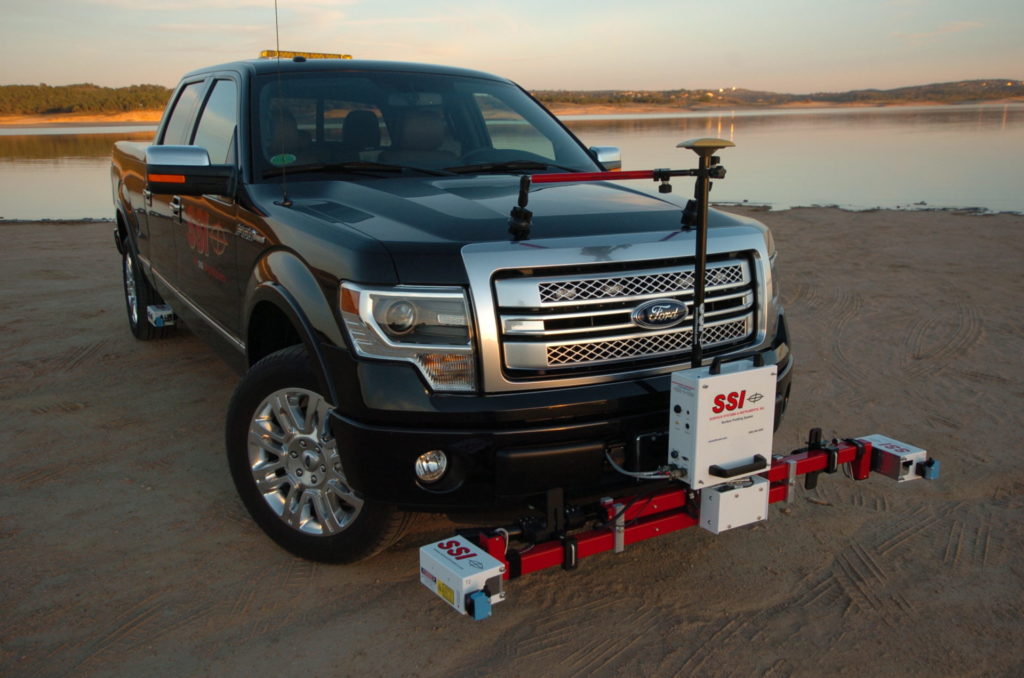

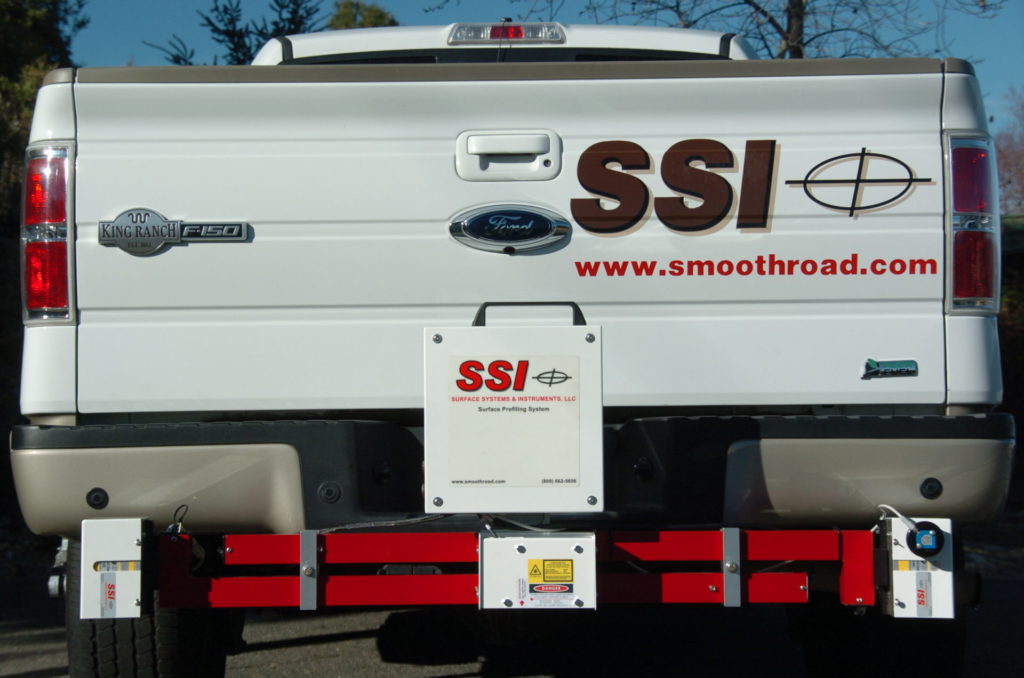

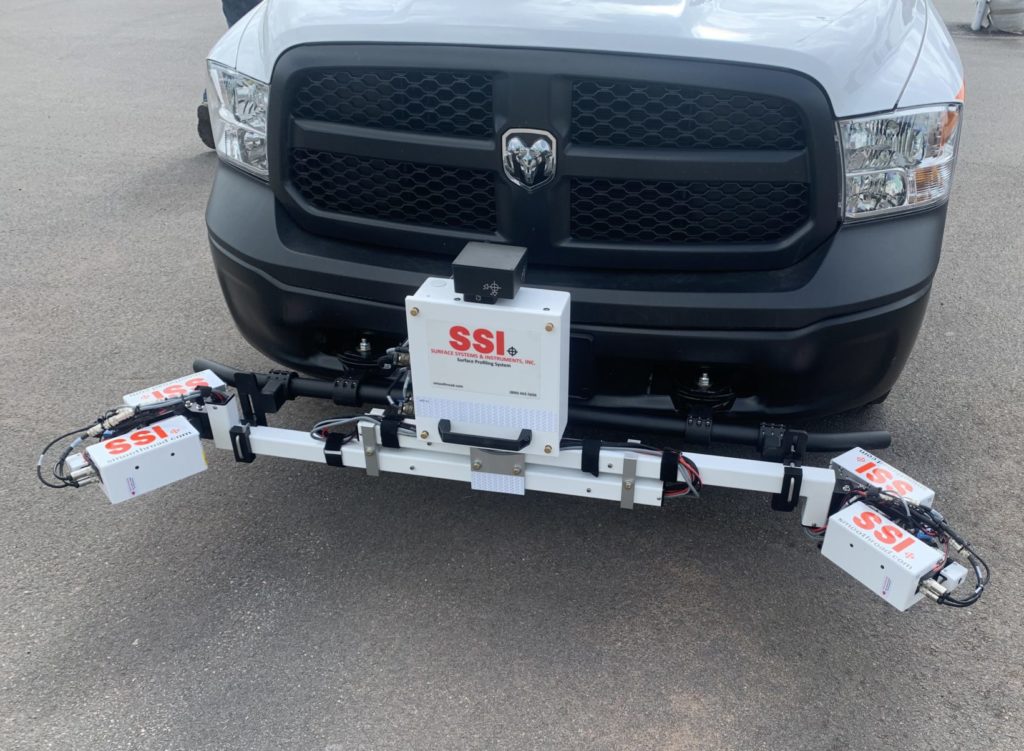

The full CS9300 frame can be mounted to the tow hooks or 2-inch hitch receiver. In the event of an emergency or routine support case, all modular parts are kept in stock at our facilities around the United States for easy domestic or worldwide shipment.

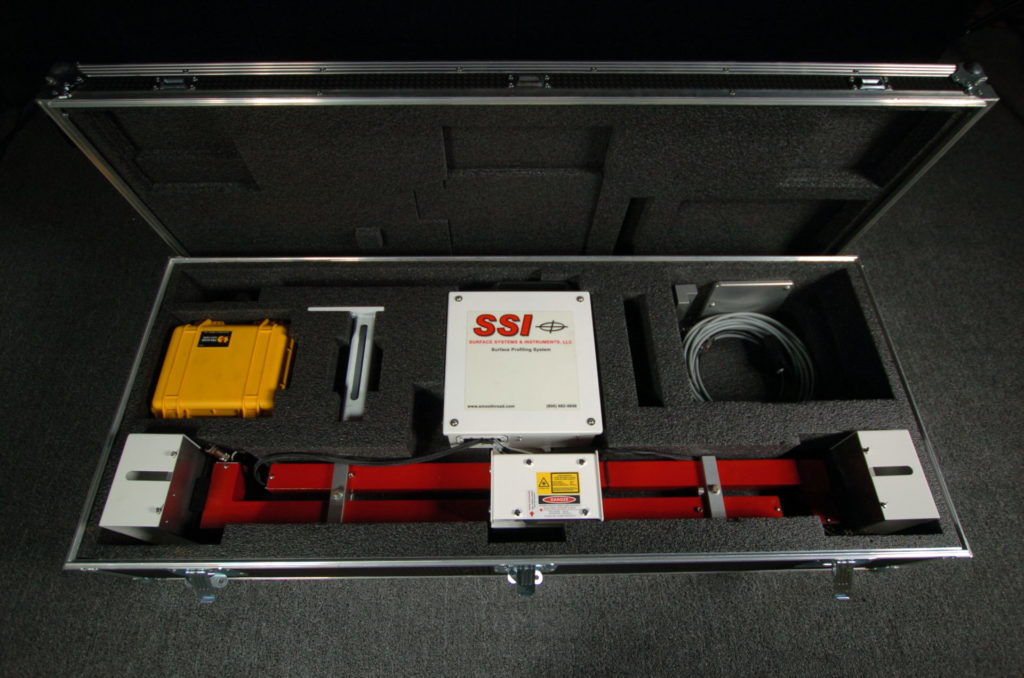

The entire CS9300 system can be removed quickly and stored in a foam molded case to protect electronics. The CS9300 frame can be secured with typical hitch locks while the lasers are easily removed and stored when not in use.

• Inertial Measurement Unit (IMU) for cross-slope
• GPS-DMI or INS-DMI
• ROW cameras
• Zero-Speed inertial profiler upgrade
• Texture measurement (MPD, ETD, RMS)
• Temperature Measurement
• Road Geometry
• 3-point, 5-point, or full lane rutting

Questions about your options? We will send you examples and comparisons.

• Inertial Measurement Unit (IMU) for cross-slope
• GPS-DMI or INS-DMI
• ROW cameras
• Zero-Speed inertial profiler upgrade
• Texture measurement (MPD – ASTM E1845, ETD, RMS)
• Temperature Measurement
• Road Geometry
• 3-point, 5-point, or full lane rutting

• One person operation possible
• GPS Tagging software standard on all SSI Profilers
• Speed range: 0-100 mph (0-160 kph). Collect valid data through vehicle speed changes and stoppages.
• Operating ambient temperature range: 32° to 128° F (0° to 43° C). Cold weather option available for below freezing testing.
• Worldwide multi-lingual support and training available.
• Moisture: profiling system components impervious to moisture (but quality of data degrades on wet pavement).
• Automatic software updates with SSI Profiler 3
• In-field replacement of portable, modular components.
• Warranty and rapid response customer support.
